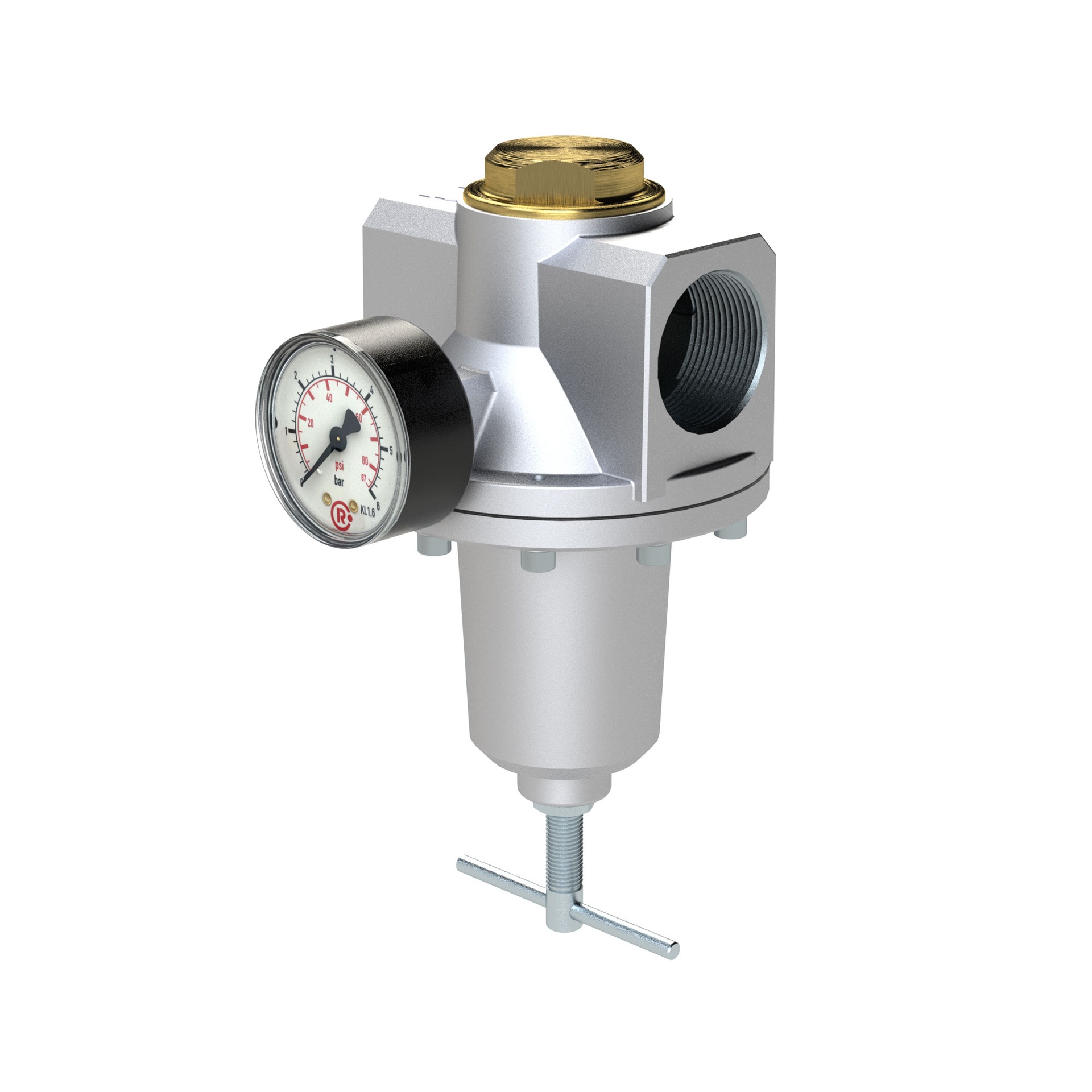

RIEGLER constant pressure regulator incl. pressure gauge, BG 5, G 1 1/2, 0.2 - 6 bar
Type number: DRK.G112.BG5.0,2-6B
EAN: 4047322792431
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Coaxial valve, pneumatic, double-acting, MS nickel-plated. FKM, operating temp. -20 °C to 150 °C, control pressure 3 - 8 bar, Rp 3/4, DN 20
| E | 119 mm |
| Flow_1 | 16500 l/min |
| fat used | Berulub OX 100 EP |
| D | 203 mm |
| Spring cover | Die-cast aluminum |
| Control range max. | 6 bar |
| BG | 5 |
| DN | 40 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.2 bar |
| A | 125 mm |
| B | 256 mm |
| Inlet pressure max. | 40 bar |
| C | 53 mm |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Class name | EASY |
| Thread | G 1 1/2 |
| Sealing material | NBR |
| Series | Standard |
