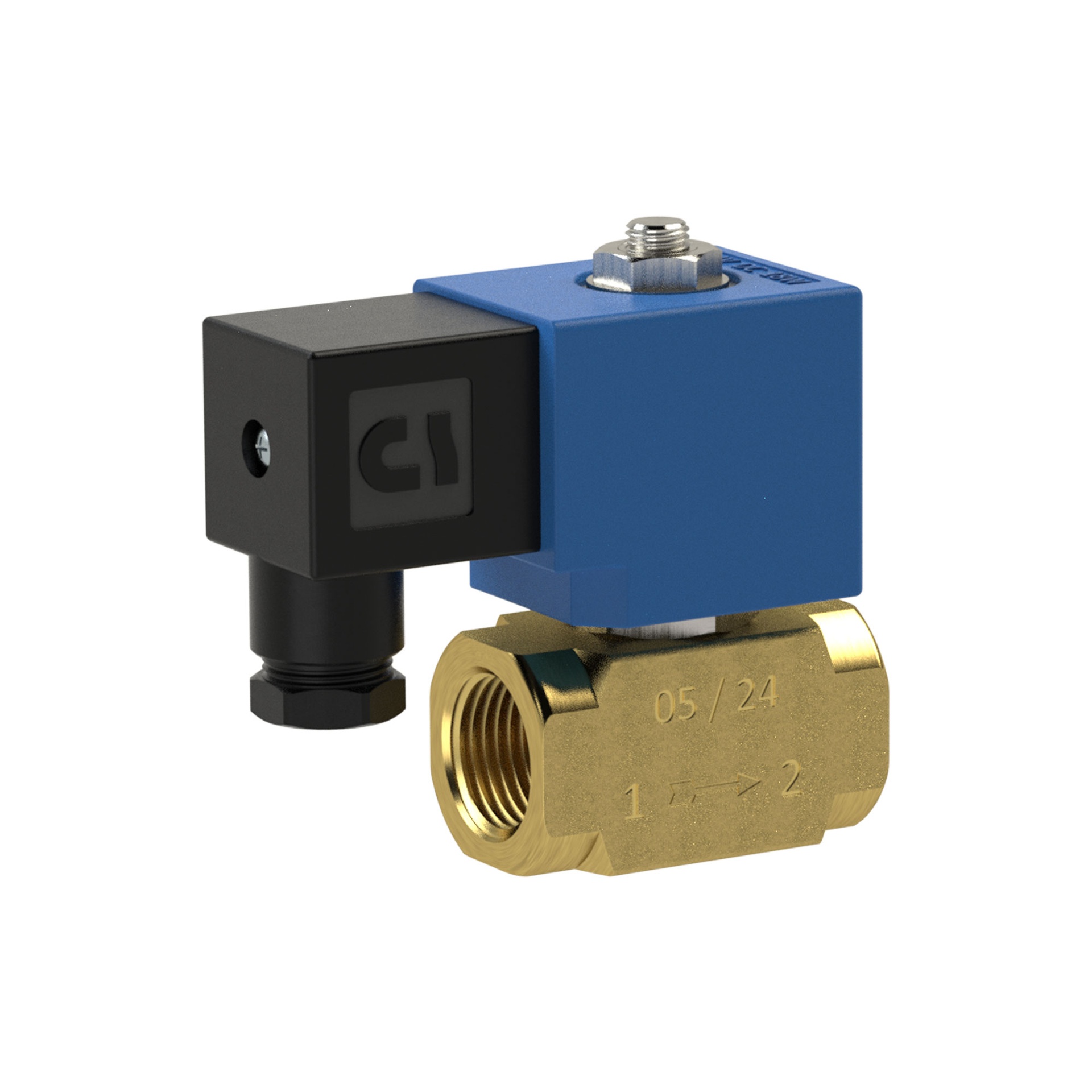

RIEGLER 2/2-way valve, MS, NO, direct acting, 24 V DC, G 1/2, PN 0-10 bar, NBR
Typennummer: MVB.MS.24V.G12.0-10B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 2/2-way MV. made of brass, for industrial systems, max. 10 bar - Type MVB.MS.24V.G12.0-10B
The RIEGLER 2/2-way valve, MS, NO, direct acting, 24 V DC, G 1/2, PN 0-10 bar, NBR switches compressed air and media flows electrically controlled via a solenoid coil. The housing is made of brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The permissible medium temperature is between -10 °C and 80 °C. Connection thread G 1/2 IG (DIN EN ISO 228-1) - suitable for common industry standards. Protection class IP 65. Fast, precise switching for automated processes.
Field of application
Typical areas of application: Automation, mechanical engineering and process technology.
| Opening | 2.5 mm |
| C | 80.5 mm |
| A | 79.5 mm |
| Electrical connection | ISO 4400 / EN 175301-803 Type A |
| Interior parts | Brass and stainless steel |
| Valve seat | Stainless steel |
| REACH Info | contains SVHC substance |
| RoHS material information | Rohs compliant |
| REACH SVHC1 Substance Name | Lead |
| Thread standard | DIN EN ISO 228-1 |
| Design | 2 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| B | 50 mm |
| Ambient temperature max. | 60 °C |
| CAS No. SVHC 1 | 7439-92-1 |
| Medium temperature max. | 80 °C |
| Class name | EASY |
| Thread | G 1/2 IG |
| Protection class | IP 65 |
| Housing | Brass |
| Sealing material | NBR |
