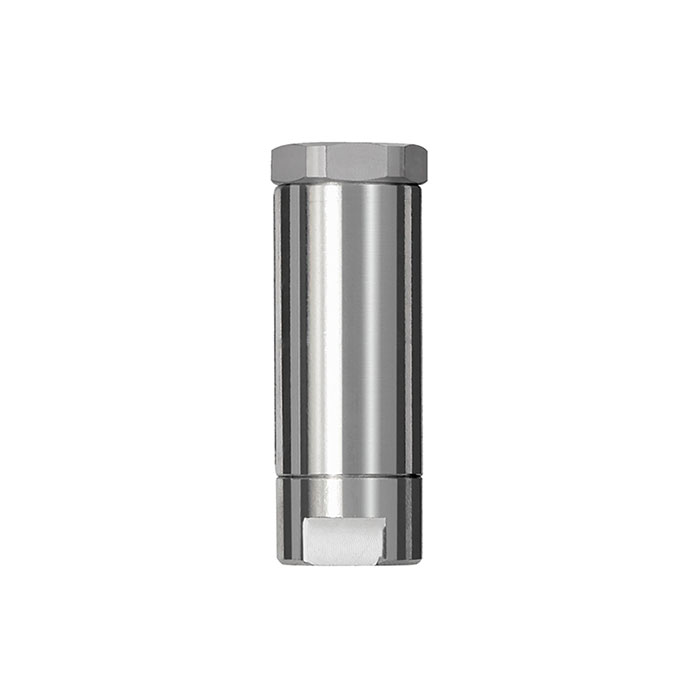

RIEGLER Inline pressure regulator, 2 x IT, G 3/4, pre-set 8 bar
Typennummer: 638.58
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Inline pressure regulator made of aluminum, for compressed air preparation, max. 25 bar - Type 638.58
The RIEGLER inline pressure regulator, 2 x female thread, with secondary venting, G 3/4, 8 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of aluminum. Designed for a maximum operating pressure of 25 bar. The temperature range extends between 0 °C and 80 °C. Connection thread G 3/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 4600 l/min. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Temperature range min. | 0 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Housing | Aluminum |
| Series | inline |
| Max. operating pressure | 25 bar |
| Interior parts | Stainless steel, nitrile rubber, brass |
| Thread | G 3/4 |
| Flow rate | 4600 l/min |
| SW 1 | 34 mm |
| SW 2 | 40 mm |
| Working pressure (preset) | 8 bar |
| A | 102 mm |
| Connection | 2 x internal thread |
| Theme shop | SAFETY |
| Class name | PLUS |
