RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 10 bar
Typennummer: VRB 53
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure regulator with continuous pressure supply "variobloc", incl. pressure gauge, BG 2, G 3/4, PE max. 25 bar, control range 0.5 - 10 bar
| Inlet pressure max. | 25 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop ˆ†<sub>p</sub> = 1 bar |
| Series | variobloc |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Spring cover | POM brass |
| Thread | G 3/4 |
| Rear connection | G 1/2 |
| Flow rate | 6800 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 70 mm |
| B | 134 mm |
| C | 33 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[100652] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 10 bar](/web/image/product.template/140087/image_128/%5B100652%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2010%20bar?unique=92a933b)
|
Type number: VRB 23 |
93.76 € | |
![[100653] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 16 bar](/web/image/product.template/140088/image_128/%5B100653%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%2016%20bar?unique=e7410be)
|
Type number: VRB 24 |
69.34 € | |
![[100651] RIEGLER Pressure regulator »variobloc«, Size 1, G 1/4, 0.5 - 6 bar](/web/image/product.template/140086/image_128/%5B100651%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%2C%200.5%20-%206%20bar?unique=dd3b2dc)
|
Type number: VRB 22 |
90.42 € | |
![[100655] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 10 bar](/web/image/product.template/140090/image_128/%5B100655%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2010%20bar?unique=2382632)
|
Type number: VRB 33 |
82.73 € | |
![[100656] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 16 bar](/web/image/product.template/140091/image_128/%5B100656%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%2016%20bar?unique=e4744e1)
|
Type number: VRB 34 |
75.54 € | |
![[100654] RIEGLER Pressure regulator »variobloc«, Size 1, G 3/8, 0.5 - 6 bar](/web/image/product.template/140089/image_128/%5B100654%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%203-8%2C%200.5%20-%206%20bar?unique=98de049)
|
Type number: VRB 32 |
82.55 € | |
![[149195] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 10 bar](/web/image/product.template/210879/image_128/%5B149195%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%2010%20bar?unique=70fd629)
|
Typennummer: VRB 63 |
244.85 € | |
![[149196] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 16 bar](/web/image/product.template/210880/image_128/%5B149196%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%2016%20bar?unique=8121500)
|
Typennummer: VRB 64 |
234.20 € | |
![[149194] RIEGLER Pressure regulator »variobloc«, Size 2, G 1, 0.5 - 6 bar](/web/image/product.template/210878/image_128/%5B149194%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201%2C%200.5%20-%206%20bar?unique=b6694d9)
|
Typennummer: VRB 62 |
244.85 € | |
![[149189] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 10 bar](/web/image/product.template/210873/image_128/%5B149189%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2010%20bar?unique=c431afe)
|
Typennummer: VRB 43 |
106.87 € | |
![[149190] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 16 bar](/web/image/product.template/210874/image_128/%5B149190%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%2016%20bar?unique=6a2df7a)
|
Typennummer: VRB 44 |
117.05 € | |
![[149188] RIEGLER Pressure regulator »variobloc«, Size 2, G 1/2, 0.5 - 6 bar](/web/image/product.template/210872/image_128/%5B149188%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%200.5%20-%206%20bar?unique=34d5bcc)
|
Typennummer: VRB 42 |
106.87 € | |
![[149193] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 16 bar](/web/image/product.template/210877/image_128/%5B149193%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%2016%20bar?unique=d5c818a)
|
Typennummer: VRB 54 |
195.09 € | |
![[149191] RIEGLER Pressure regulator »variobloc«, Size 2, G 3/4, 0.5 - 6 bar](/web/image/product.template/210875/image_128/%5B149191%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%2C%200.5%20-%206%20bar?unique=2646adf)
|
Typennummer: VRB 52 |
195.09 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

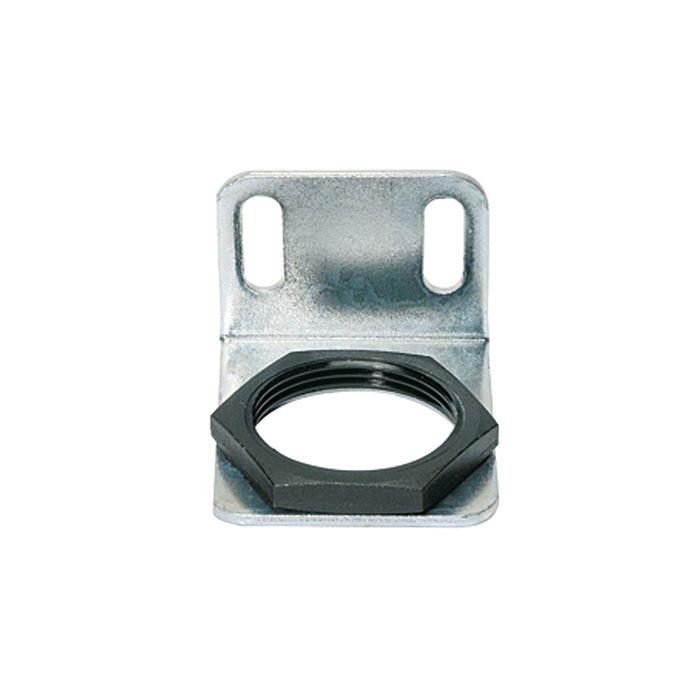

![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=3673f35)
|
Type number: 630/2-B |
13.52 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=af658ad)
|
Type number: VZ 719 |
13.99 € | |
![[100753] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 3/4 and G 1](/web/image/product.template/140189/image_128/%5B100753%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%203-4%20and%20G%201?unique=f8c6af2)
|
Type number: VZ 104 |
14.01 € | |
![[100757] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2](/web/image/product.template/140193/image_128/%5B100757%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=cf5482f)
|
Type number: VZ 204 |
23.11 € | |
![[100762] RIEGLER Connection plate set to upgrade equipment from G 3/4 to G 1](/web/image/product.template/140198/image_128/%5B100762%5D%20RIEGLER%20Connection%20plate%20set%20to%20upgrade%20equipment%20from%20G%203-4%20to%20G%201?unique=f5c8c5e)
|
Type number: VZ 500 |
29.85 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=d10629c)
|
Type number: 443.3.94 |
2.36 € | |

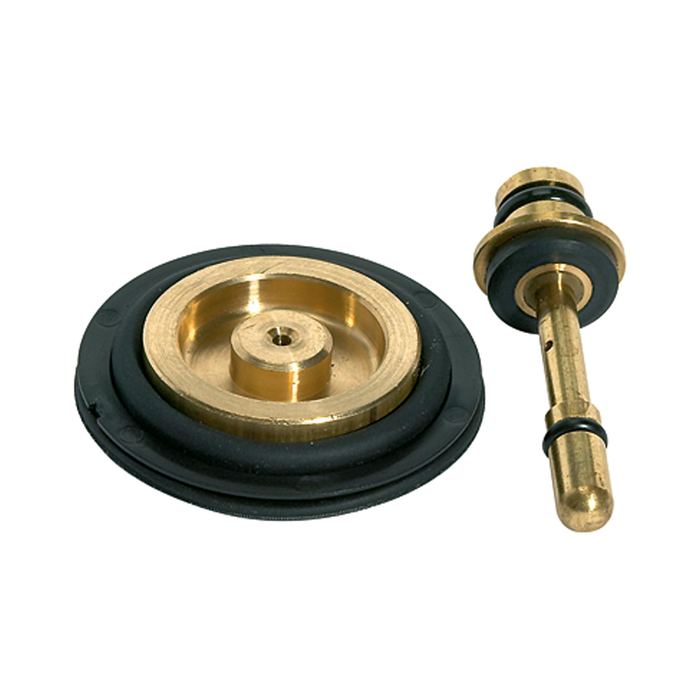

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=f990572)
|
