RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 1/8, NO

Price:

85.54 €

RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 1/8, NC
RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 1/8, NC
85.54 € 85.54 €
RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 3/8, NC
RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 3/8, NC
136.33 € 136.33 €

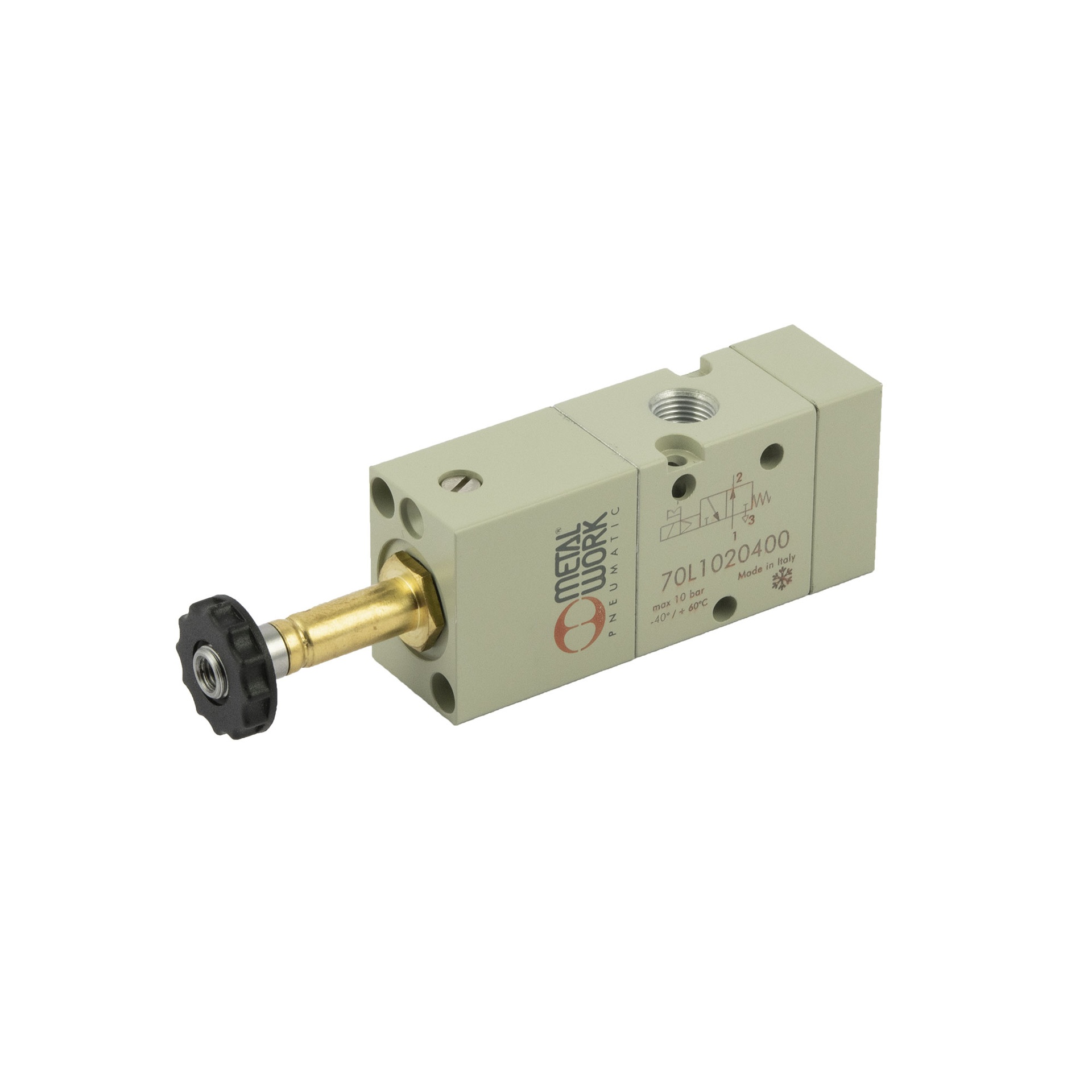

RIEGLER 3/2-way valve, cryogenic, electropneumatic, monostable, G 1/8, NO

https://www.filcom-technik.de/web/image/product.template/284708/image_1920?unique=009dfd6

Type number: 70L1020400

EAN: 4047322807159

85.54 € 85.54 EUR 85.54 € VAT Included

110.58 € VAT Included

Price tiers visible after login - register now and get your benefits!

  • Brand

This combination does not exist.


Price Tiers
from 110 € free shipping Details shipping costs

Riegler

Riegler

RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.


Product no. :

149930

EAN :

4047322807159

Weight :

0.01 kg

Autogenous welding box, 17 mm, 5 welding inserts 0.5 - 9 mm, blade cutting insert 3 - 100 mm with ring nozzles, handle, accessories

Execution electropneumatic
Control air supply internal
Operating pressure min. at -40 to -10 °C 5 bar
Operating pressure min. at -10 to 60 °C 3 bar
Tension ohne Spannung
Symbol 47
Scope of delivery without plug and coil
Series Series 70 Low temperature
Medium filtered, dry and unlubricated compressed air
Flow rate measurement 1 Flow rate at 6 bar and ∆p 0.5 bar
Flow rate measurement 2 Flow rate at 6 bar and Δp 1.0 bar
Flow_2 550 Nl/min
Flow_1 400 Nl/min
Piston Nickel-plated aluminum
Actuation monostable
DN 5
Ambient temperature min. -40 °C
Medium temperature min. -40 °C
Max. operating pressure 10 bar
Function 3/2 NO
Ambient temperature max. 60 °C
Medium temperature max. 60 °C
Valve body Aluminum
Connection G 1/8 FEMALE THREAD
Sealing material NBR
Class name PLUS
Manual override resting
Spring Special steel
