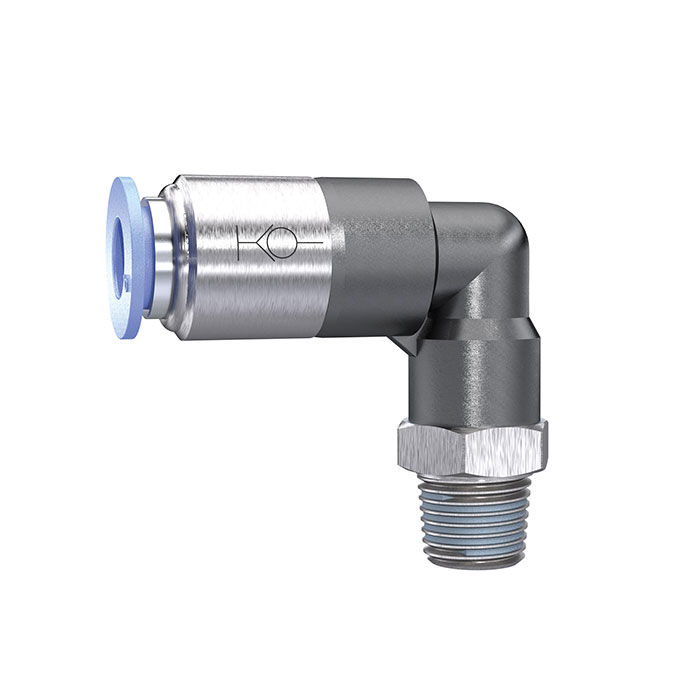

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/2 o.
Typennummer: 198.1210-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Push-in L-fitting "Blue series" self-closing, R 1/2 a., for hose outer Ø 10 mm, pmax. 10 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/2 |
| SW | 21 mm |
| Thread standard | ISO 7-1 |
| Function | Self-locking |
| for hose outer Ø | 10 mm |
| Execution | With thread coating |
| L1 | 45 mm |
| L2 | 34 mm |
| Class name | EASY |
| Construction method | rotatable |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

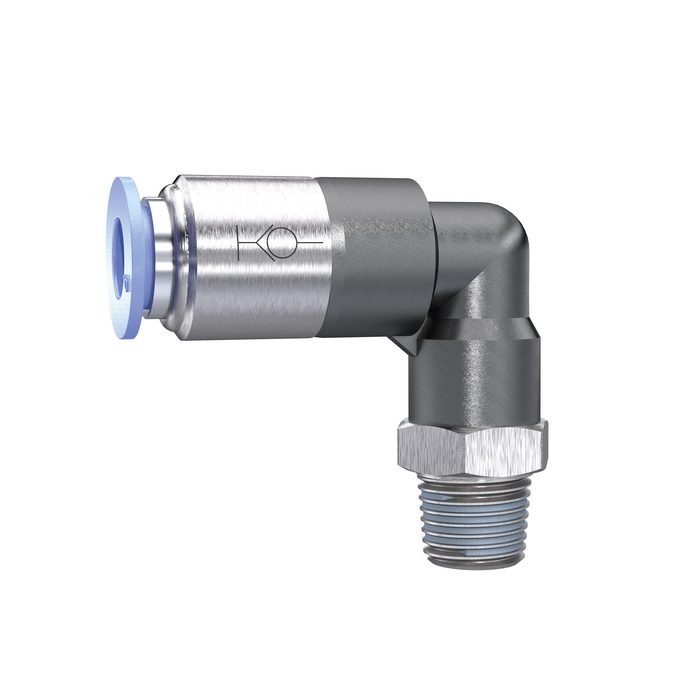

![[151484] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/2 o.](/web/image/product.template/210639/image_128/%5B151484%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-2%20o.?unique=78012c1)
|
Typennummer: 198.1212-2 |
6.57 € | |
![[151479] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.](/web/image/product.template/210634/image_128/%5B151479%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-4%20o.?unique=c140041)
|
Typennummer: 198.1410-2 |
5.13 € | |
![[151477] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.](/web/image/product.template/210632/image_128/%5B151477%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-4%20o.?unique=9ee859c)
|
Typennummer: 198.146-2 |
3.44 € | |
![[151478] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/4 o.](/web/image/product.template/210633/image_128/%5B151478%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-4%20o.?unique=be0d68d)
|
Typennummer: 198.148-2 |
2.96 € | |
![[151475] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/8 o.](/web/image/product.template/210630/image_128/%5B151475%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-8%20o.?unique=ae255cb)
|
Typennummer: 198.186-2 |
2.81 € | |
![[151474] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/8 o.](/web/image/product.template/210629/image_128/%5B151474%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-8%20o.?unique=cb7f576)
|
Typennummer: 198.184-2 |
2.81 € | |
![[151476] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 1/8 o.](/web/image/product.template/210631/image_128/%5B151476%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%201-8%20o.?unique=1c645f1)
|
Typennummer: 198.188-2 |
2.96 € | |
![[151480] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 3/8 o.](/web/image/product.template/210635/image_128/%5B151480%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%203-8%20o.?unique=660b1db)
|
Typennummer: 198.388-2 |
3.56 € | |
![[151481] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 3/8 o.](/web/image/product.template/210636/image_128/%5B151481%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%203-8%20o.?unique=a25922b)
|
Typennummer: 198.3810-2 |
5.00 € | |
![[151482] RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 3/8 o.](/web/image/product.template/210637/image_128/%5B151482%5D%20RIEGLER%20Push-in%20L-fitting%20%C2%BBBlue%20Series%C2%AB%2C%20Self-locking%2C%20R%203-8%20o.?unique=e757989)
|
Typennummer: 198.3812-2 |
6.79 € | |
