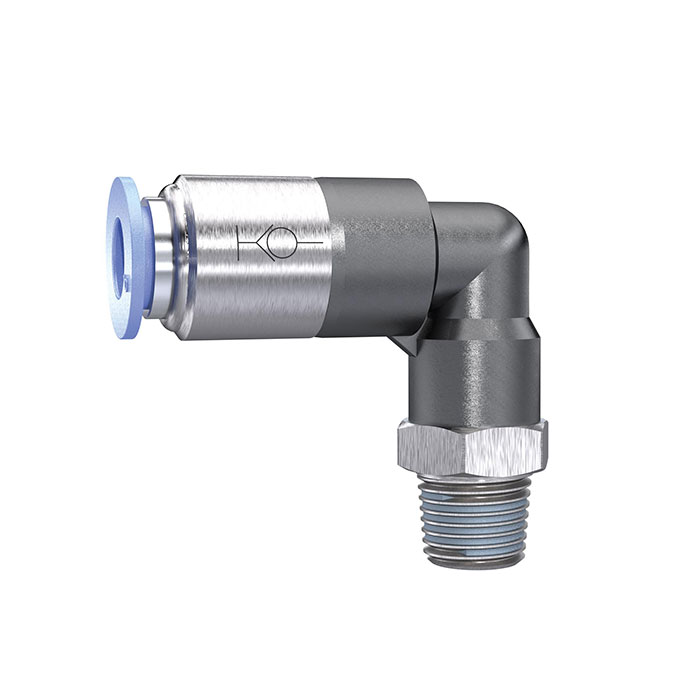

RIEGLER Push-in L-fitting »Blue Series«, Self-locking, R 3/8 o.
Type number: 198.3810-2
EAN: 4047322593373
Push-in L-fitting "Blue series" self-closing, R 3/8 a., for hose outer Ø 10 mm, pmax. 10 bar, plastic/MS nickel-plated
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 3/8 |
| SW | 17 mm |
| Thread standard | ISO 7-1 |
| Function | Self-locking |
| for hose outer Ø | 10 mm |
| Execution | With thread coating |
| L1 | 45 mm |
| L2 | 30.5 mm |
| Class name | EASY |
| Construction method | rotatable |
