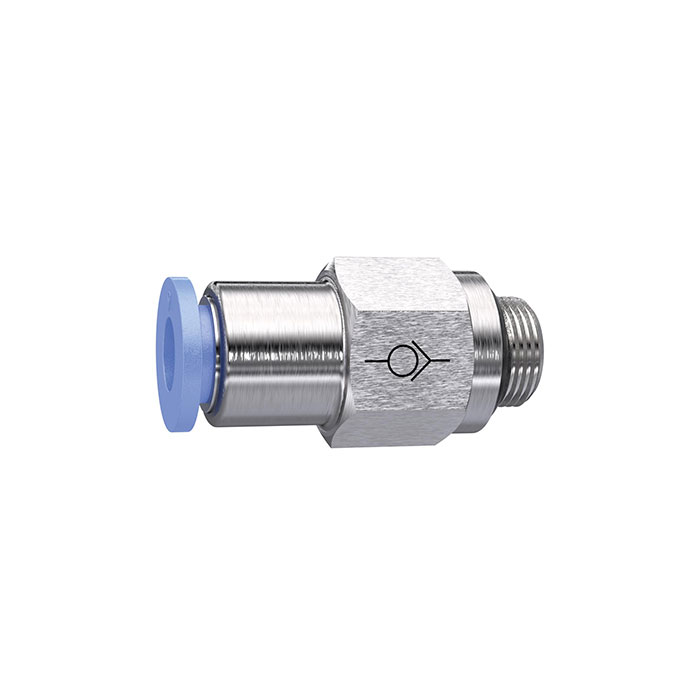

RIEGLER Straight Check valve »Blue Series«, Thread to hose, M5 o.
Typennummer: 200.54-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight check valve "Blue series" made of plastic or nickel-plated brass - Type 200.54-2
The RIEGLER straight non-return valve "Blue Series", thread - hose, M5 a. enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is 0 bar to 10 bar. The temperature range is between 0 °C and 60 °C. Connection thread M5 (DIN 13-1) - suitable for common industrial standards. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Opening pressure min. | 0.2 bar |
| Working pressure min. | 0 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems |
| Flow direction | Thread to the hose |
| Solder ring | Blue plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M5 |
| SW | 10 mm |
| Thread standard | DIN 13-1 |
| for hose outer Ø | 4 mm |
| Execution | With O-ring (NBR) |
| L1 | 33 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[151498] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/2 o.](/web/image/product.template/210653/image_128/%5B151498%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-2%20o.?unique=3ebd0ee)
|
Typennummer: 200.1210-2 |
6.01 € | |
![[151499] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/2 o.](/web/image/product.template/210654/image_128/%5B151499%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-2%20o.?unique=354c248)
|
Typennummer: 200.1212-2 |
7.06 € | |
![[151495] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/4 o.](/web/image/product.template/210650/image_128/%5B151495%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-4%20o.?unique=8efb126)
|
Typennummer: 200.148-2 |
4.32 € | |
![[151494] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/4 o.](/web/image/product.template/210649/image_128/%5B151494%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-4%20o.?unique=92a8e51)
|
Typennummer: 200.146-2 |
4.27 € | |
![[151491] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/8 o.](/web/image/product.template/210646/image_128/%5B151491%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-8%20o.?unique=9343d90)
|
Typennummer: 200.184-2 |
2.43 € | |

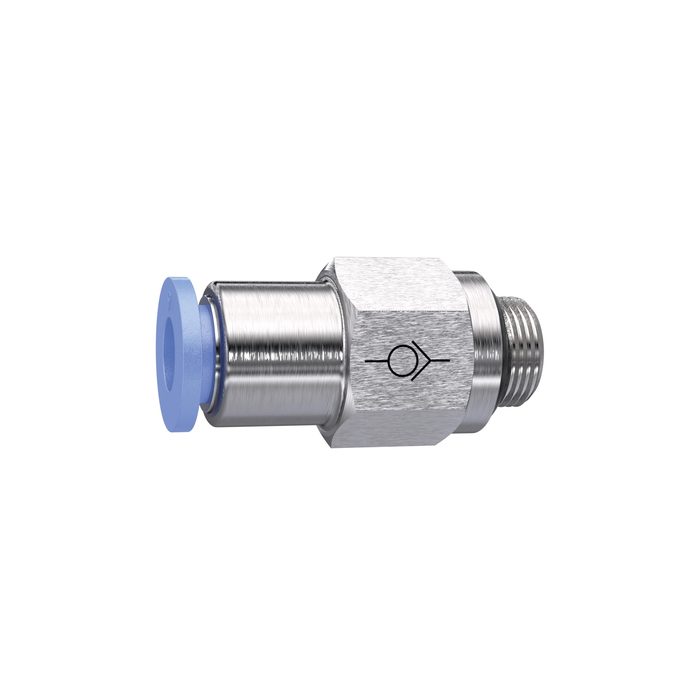

![[151493] RIEGLER Straight Check valve »Blue Series«, Thread to hose, G 1/8 o.](/web/image/product.template/210648/image_128/%5B151493%5D%20RIEGLER%20Straight%20Check%20valve%20%C2%BBBlue%20Series%C2%AB%2C%20Thread%20to%20hose%2C%20G%201-8%20o.?unique=81d748e)
|
