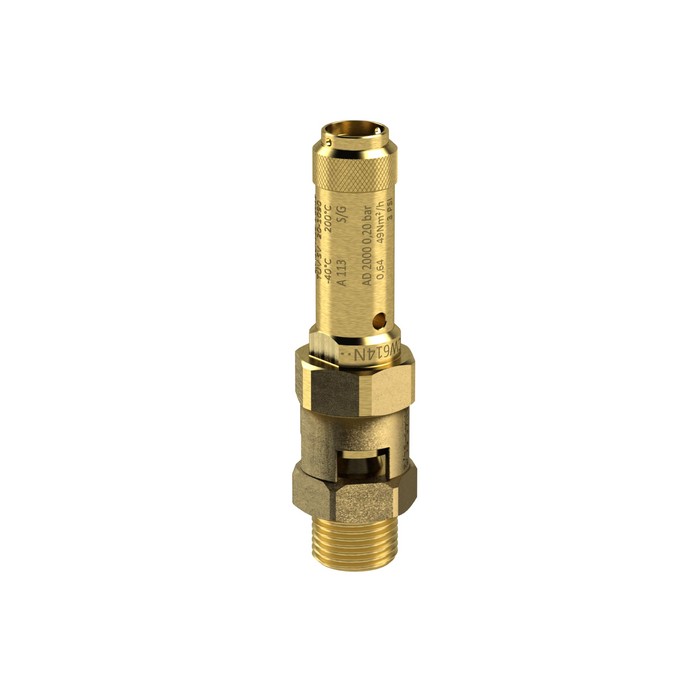

RIEGLER safety valve, brass, G 1, response pressure 30 bar
Type number: 229.03-30,0
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Safety valve made of brass, for industrial systems, max. 30 bar - Type 229.03-30.0
The RIEGLER safety valve, brass, G 1, response pressure 30 bar reliably protects compressed air systems and containers against impermissible overpressure. The housing is made of brass with FPM seals. The operating pressure range is 0.5 bar to 30 bar. The operating temperature is between -40 °C and 200 °C. Connection thread G 1 - suitable for common industry standards. Reliable overpressure protection for safe systems.
Field of application
Typical areas of application: Pressure vessels, compressor systems and piping systems.
| Housing | Brass |
| Sealing material | FPM |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 30 bar |
| Operating temperature min. | -40 °C |
| Operating temperature max. | 200 °C |
| Thread | G 1 |
| SW | 41 mm |
| Response pressure min. | 30 bar |
| A | 18 mm |
| H | 132 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Pressure spring | Carbon steel |
| REACH Info | contains SVHC substance |
| Theme shop | SAFETY |
| Class name | MAX |
