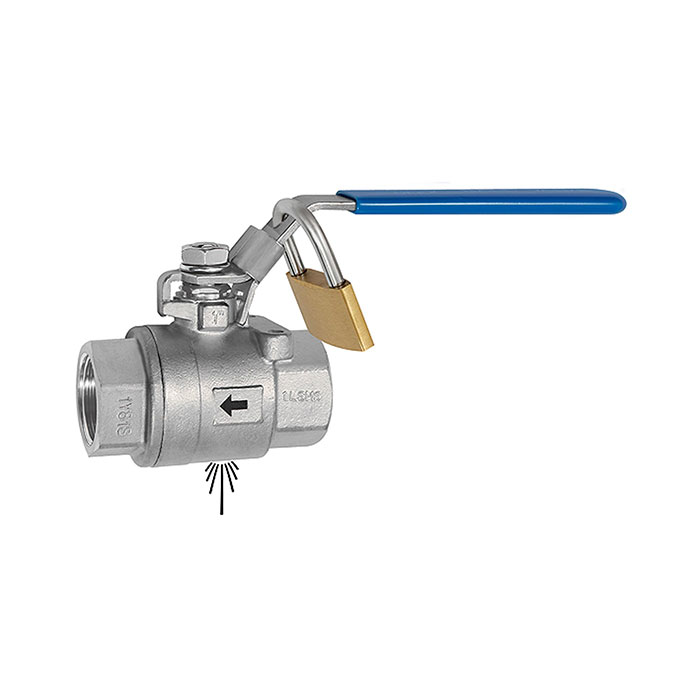

RIEGLER Stainless steel ball valve, lockable, venting hole, G 3/4
Typennummer: 3396.05
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER ES safety ball valve, lockable, made of stainless steel 1.4408, for industrial systems - Type 3396.05
The RIEGLER ES safety ball valve lockable, vent hole M5, G 3/4 opens or shuts off the media flow with a quarter turn - full flow with minimal pressure loss. The housing is made of stainless steel 1.4408. Designed for a maximum operating pressure of 17 bar. The operating temperature is between -20 °C and 160 °C. Connection thread G 3/4 (G thread to DIN EN ISO 228-1) - suitable for common industry standards. Simple operation with minimal pressure loss.
Field of application
Typical areas of application: Compressed air, water, gas and industrial pipes.
| Housing | Stainless steel 1.4408 |
| Max. operating pressure | 17 bar |
| Ball | Stainless steel 1.4408 |
| Ball seal | PTFE + PFA |
| Spindle seal | PTFE |
| Hand lever | Stainless steel 1.4301, with plastic coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 160 °C |
| Thread | G 3/4 |
| DN | 20 |
| Thread standard | G-thread according to DIN EN ISO 228-1 |
| Vent hole | M5 |
| Note | The item images may differ from the original part |
| A | 123 mm |
| B | 60.5 mm |
| L | 77.3 mm |
| C Ø | 20 mm |
| Theme shop | SAFETY |
| Class name | STAINLESS STEEL |
| Bore diameter padlock | approx. 7.8 mm |
