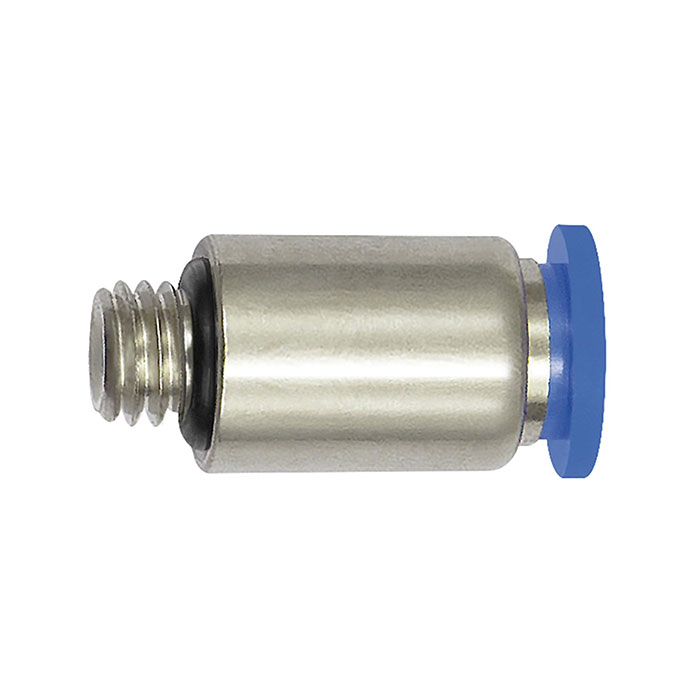

RIEGLER Straight push-in fitting »Blue Series« mini, round, M7
Typennummer: 207.007-4M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Straight push-in fitting "Blue Series" mini, round, M7, for conduit outer Ø 4 mm, pmax 10 bar, plastic/MS nickel-plated.
| Temperature range min. | 0 °C |
| Temperature range max. | 60 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series mini |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | M7 |
| Thread standard | DIN 13-1, NBR O-ring |
| for hose outer Ø | 4 mm |
| L1 | 19.7 mm |
| Class name | EASY |
