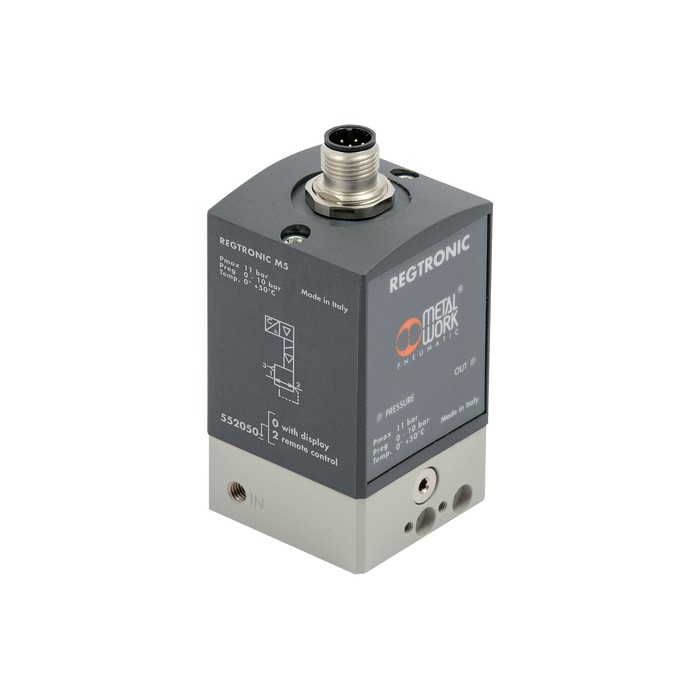

RIEGLER precision prop. pressure regulator REGTRONIC, M5, remote-controlled, IO-Link
Type number: 5530502
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
REGTRONIC precision proportional pressure regulator, M5, remote-controlled, IO-Link, p1= max. 11 bar, p2= 0.05-10 bar, T= 0-50 °C
| Inlet pressure max. | 11 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 50 °C |
| Medium | Gefilterte, ungeölte Druckluft, max. Partikelgröße 10 µm, frei von Kondensat |
| Housing | Aluminum |
| Series | REGTRONIC |
| Protection class | IP 65 |
| Electrical connection | M12-Stecker, 5-polig |
| Display | without |
| Installation position | any |
| Hysteresis | ±0,2 % (vom Endwert) |
| Input signal | IO-Link |
| Repeatability | ±0.2 % (of the final value) |
| Analogue output | ohne |
| Thread | M5 IG |
| Control range min. | 0.05 bar |
| Control range max. | 10 bar |
| A | 47 mm |
| B | 88 mm |
| Execution | IO-Link |
| Flow 1 | 10 Nl/min |
| Flow 2 | 10 Nl/min |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Δp 1.0 bar |
| Class name | MAX |
| Operating voltage min. | 18 V DC |
| Operating voltage max. | 30 V DC |
| Sensitivity/deadband | Setting range: 10 - 300 mbar |
| Inlet pressure min. | pressure to be regulated +1 bar |
| Temperature dependence | max. 2 mbar / °C |
| WiFi | without |
| Compatible with app | no |
| Supply voltage | 18 to 30 V DC |
| Max. permissible voltage | 32 V DC * |
| Power consumption | max. 150 mA at 18 V DC |
