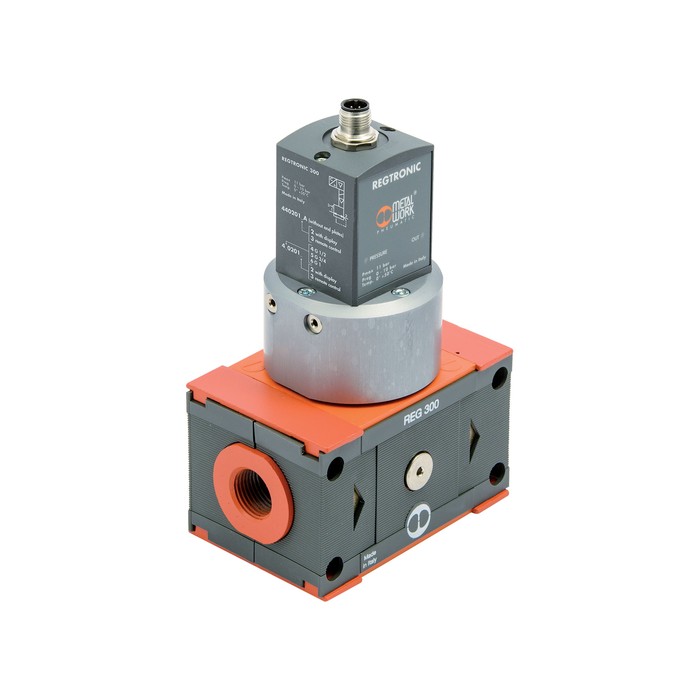

RIEGLER precision prop. pressure regulator REGTRONIC 300, G 3/4, remote-controlled, 0-10 V
Type number: 4502013
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Precision proportional pressure regulator REGTRONIC 300, G 3/4, remote-controlled, 0-10 V, p1= max. 11 bar, p2= 0.05-10 bar, T= 0-50 °C
| Inlet pressure max. | 11 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 50 °C |
| Medium | Gefilterte, ungeölte Druckluft, max. Partikelgröße 10 µm, frei von Kondensat |
| Housing | Aluminum |
| Series | REGTRONIC 300 |
| Protection class | IP 65 |
| Electrical connection | M12-Stecker, 8-polig |
| Display | without |
| Installation position | any |
| Hysteresis | ±0,2 % (vom Endwert) |
| Digital output | PNP / NPN |
| Input signal | 0 - 5 V DC / 0 - 10 V DC / 4 - 20 mA / RS 232 |
| Repeatability | ±0.2 % (of the final value) |
| Analogue output | 0 - 10 V DC |
| Thread | G 3/4 IG |
| Control range min. | 0.05 bar |
| Control range max. | 10 bar |
| A | 110 mm |
| B | 174.5 mm |
| Execution | analog |
| Flow 1 | 4500 Nl/min |
| Flow 2 | 7000 Nl/min |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Δp 1.0 bar |
| Class name | MAX |
| Operating voltage min. | 10.8 V DC |
| Operating voltage max. | 31.2 V DC |
| Sensitivity/deadband | Setting range: 10 - 300 mbar |
| Inlet pressure min. | pressure to be regulated +1 bar |
| Resolution of the analog output | ±0.1 % (of the final value) |
| Temperature dependence | max. 2 mbar / °C |
| WiFi | without |
| Compatible with app | no |
| Supply voltage | 12 -10 % bis 24 +30 % V DC |
| Max. permissible voltage | 32 V DC * |
| Power consumption | max. 220 mA at 12 V DC |
