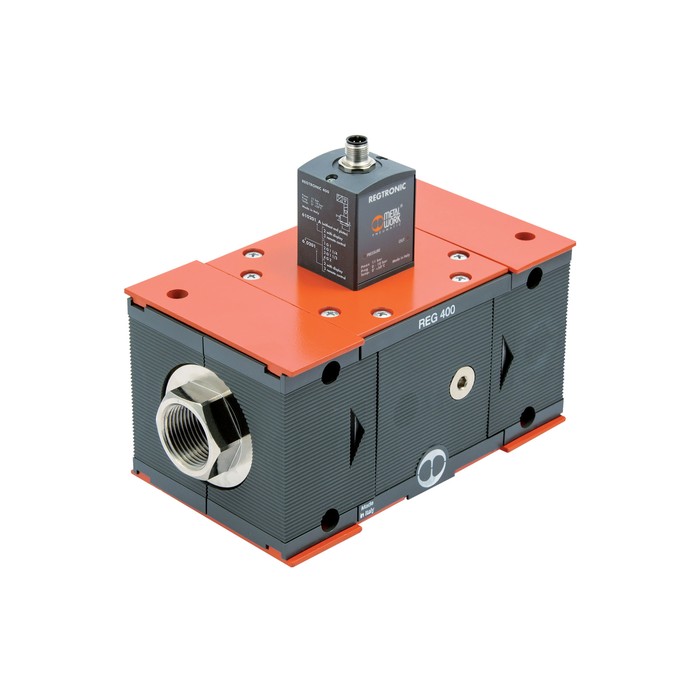

RIEGLER precision prop. pressure regulator REGTRONIC 400, G 2, remote-controlled, IO-Link
Type number: 6402313
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Precision prop. pressure regulator REGTRONIC 400 made of aluminum, for compressed air treatment - Type 6402313
The RIEGLER precision prop. pressure regulator REGTRONIC 400, G 2, remote-controlled, IO-Link reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of aluminum. The control range extends from 0.05 bar to 10 bar with a maximum inlet pressure of 11 bar. The temperature range is between 0 °C and 50 °C. Connection thread G 2 IG - suitable for common industry standards. Suitable for filtered, unlubricated compressed air, max. particle size 10 µm, free of condensate. Protection class IP 65. Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 11 bar |
| Temperature range min. | 0 °C |
| Temperature range max. | 50 °C |
| Medium | Gefilterte, ungeölte Druckluft, max. Partikelgröße 10 µm, frei von Kondensat |
| Housing | Aluminum |
| Series | REGTRONIC 400 |
| Protection class | IP 65 |
| Electrical connection | M12-Stecker, 5-polig |
| Display | without |
| Installation position | any |
| Hysteresis | ±0,2 % (vom Endwert) |
| Input signal | IO-Link |
| Repeatability | ±0.2 % (of the final value) |
| Analogue output | ohne |
| Thread | G 2 IG |
| Control range min. | 0.05 bar |
| Control range max. | 10 bar |
| A | 286 |
| B | 198 mm |
| Execution | IO-Link |
| Flow 1 | 20000 Nl/min |
| Flow 2 | 20000 Nl/min |
| Flow rate measurement 1 | Flow rate at 6.3 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6.3 bar and Δp 1.0 bar |
| Class name | MAX |
| Operating voltage min. | 18 V DC |
| Operating voltage max. | 30 V DC |
| Sensitivity/deadband | Setting range: 10 - 300 mbar |
| Inlet pressure min. | pressure to be regulated +1 bar |
| Temperature dependence | max. 2 mbar / °C |
| WiFi | without |
| Compatible with app | no |
| Supply voltage | 18 to 30 V DC |
| Max. permissible voltage | 32 V DC * |
| Power consumption | max. 150 mA at 18 V DC |
