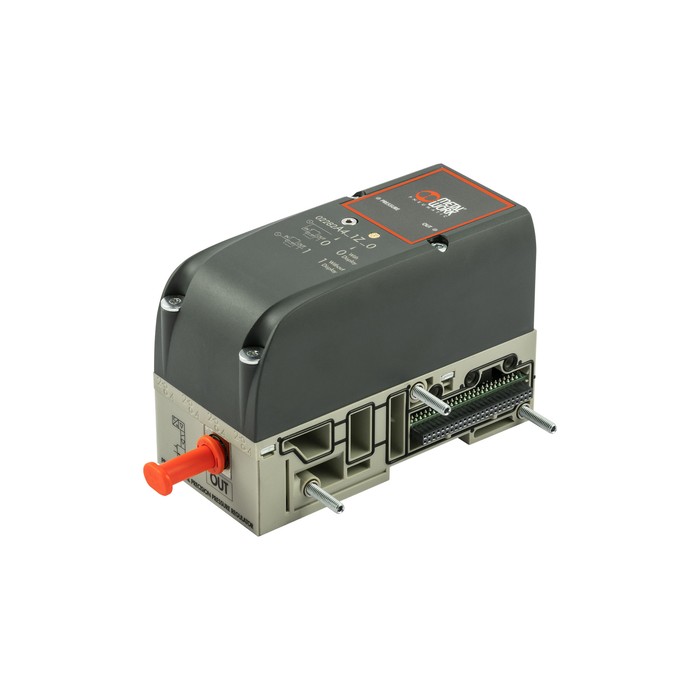

RIEGLER prop. pressure controller EB 80, fieldbus, channel 1 in series, without display
Type number: 02282A411Z10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Proportional pressure regulator for valve terminal EB 80, fieldbus, channel 1 controlled in series, without display
| Medium | filtered, unlubricated compressed air |
| Housing | Technopolymer |
| Sealing material | NBR |
| Series | EB 80 |
| Protection class | IP 65 |
| Electrical connection | über interne Feldbusanbindung |
| Display | without |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 50 °C |
| Required cleanliness class according to ISO 8573-1 | 3.7.3 |
| Hysteresis | = ±0,2 % (vom Endwert) |
| Input signal | über interne Feldbusanbindung |
| Repeatability | = ±0.2 % (of the final value) |
| Analogue output | ohne |
| Control range min. | 0.05 bar |
| Control range max. | 10 bar |
| Execution | Feldbus |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | Rohs compliant |
| Flow 1 | 850 Nl/min |
| Flow 2 | 1250 Nl/min |
| REACH Info | contains SVHC substance |
| Flow rate measurement 1 | at P1 = 10 bar, P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | MAX |
| Inlet pressure min. | pressure to be regulated +0.5 to 1 bar |
| Temperature dependence | max. 2 mbar / °C |
| Power consumption | max. 220 mA at 12 V DC |
| Inlet pressure max. | 10,5 bar |
| Channel 1 | regulated in series |
| Module type | A |
| Module name | Proportional pressure regulator |
