RIEGLER Straight push-in fitting »universal short« 1/8, hose8, taper seat
Typennummer: GS188MSVUNI
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Straight push-in fitting »universal short«, 1/8, hose-Ø 8, taper seat, Working pressure -0,99 to 20 bar, nickel-plated brass
| Medium | Compressed air, water |
| Sealing material | NBR |
| Series | universal short |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 20 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, automotive, textile and packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | POM |
| Recommended hose | PA, PU, PTFE |
| Collet chuck | Stainless steel |
| Thread | G 1/8 |
| SW | 14 mm |
| for hose outer Ø | 8 mm |
| Internal hexagon | 5 mm |
| L1 | 24.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[153291] RIEGLER Straight push-in fitting »universal short« 1/2, hose10,taper seat](/web/image/product.template/212511/image_128/%5B153291%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBuniversal%20short%C2%AB%201-2%2C%20hose10%2Ctaper%20seat?unique=420f2c2)
|
Typennummer: GS1210MSVUNI |
4.00 € | |
![[153289] RIEGLER Straight push-in fitting »universal short« 1/2, hose6, taper seat](/web/image/product.template/212509/image_128/%5B153289%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBuniversal%20short%C2%AB%201-2%2C%20hose6%2C%20taper%20seat?unique=11f4f8e)
|
Typennummer: GS126MSVUNI |
3.50 € | |
![[153290] RIEGLER Straight push-in fitting »universal short« 1/2, hose8, taper seat](/web/image/product.template/212510/image_128/%5B153290%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBuniversal%20short%C2%AB%201-2%2C%20hose8%2C%20taper%20seat?unique=38ac5e4)
|
Typennummer: GS128MSVUNI |
3.62 € | |
![[153285] RIEGLER Straight push-in fitting »universal short« 1/4, hose10,taper seat](/web/image/product.template/212505/image_128/%5B153285%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBuniversal%20short%C2%AB%201-4%2C%20hose10%2Ctaper%20seat?unique=bfffafa)
|
Typennummer: GS1410MSVUNI |
3.52 € | |

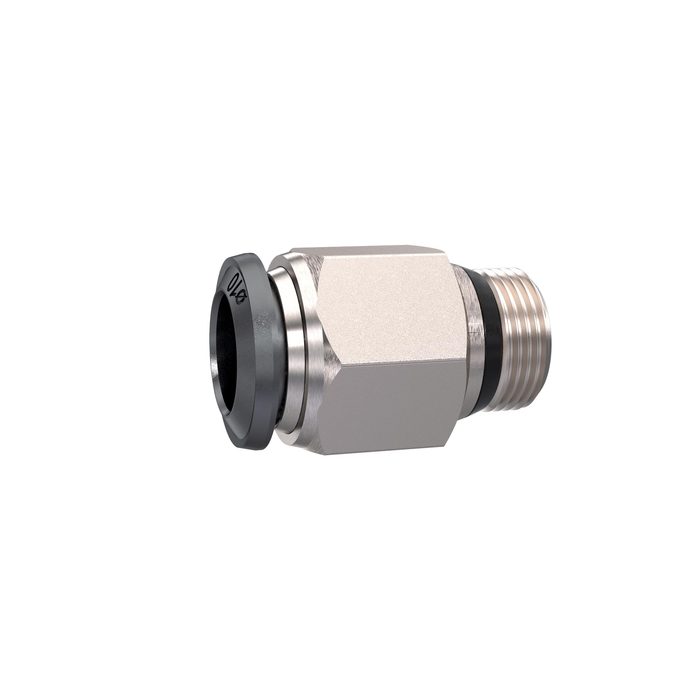

![[153283] RIEGLER Straight push-in fitting »universal short« 1/4, hose6, taper seat](/web/image/product.template/212503/image_128/%5B153283%5D%20RIEGLER%20Straight%20push-in%20fitting%20%C2%BBuniversal%20short%C2%AB%201-4%2C%20hose6%2C%20taper%20seat?unique=396f846)
|
