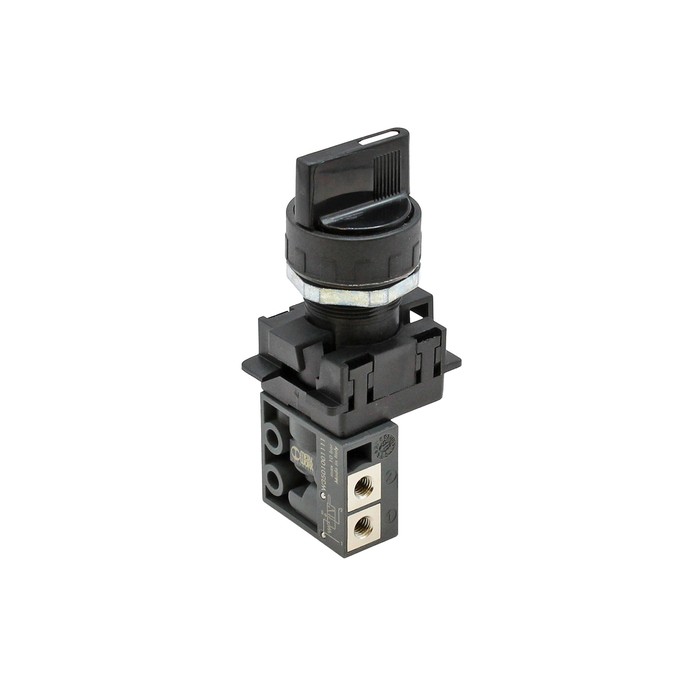

RIEGLER 3/2 mini valve, manual, rotary knob, NC, monostable, M5 lateral
Type number: 512.204-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
3/2-way miniature valve, manual, rotary knob, NC, monostable, M5 lateral, operating pressure 0.5 - 10 bar, operating temp. -10 °C to 60 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Reihe VME |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| DN | 2.5 mm |
| Function | 3/2 NC |
| Actuation | monostable |
| Symbol | 4 |
| Execution | manually operated |
| Connection | M5 IG lateral |
| Flow 1 | 35 Nl/min |
| Flow 2 | 60 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
