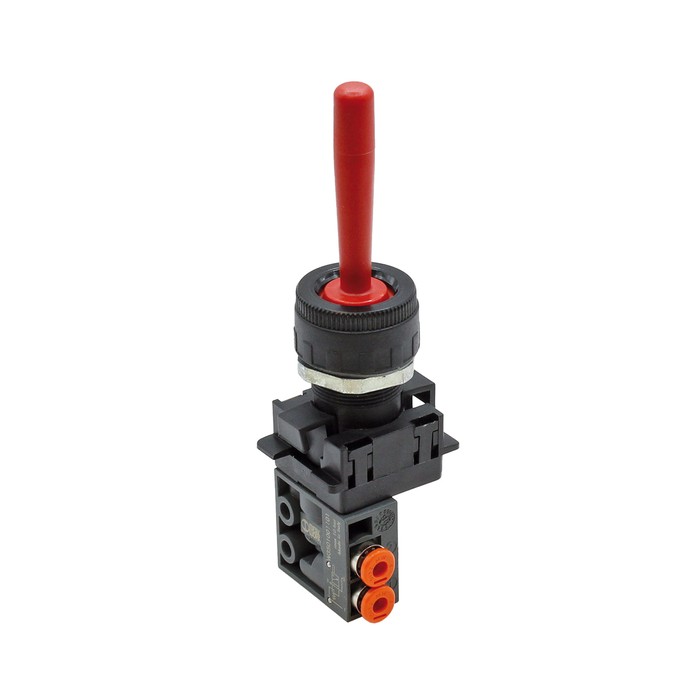

RIEGLER 3/2 mini valve, manual, hand lever, NC, monostable, 4 mm lateral.
Type number: 512.403-1
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2 mini valve for pneumatic control, max. 10 bar, push-in connection Ø 4 mm on the side - type 512.403-1
The RIEGLER 3/2 mini valve, manual, hand lever, NC, monostable, 4 mm lateral, controls the direction of the compressed air flow for targeted movement sequences. with NBR seals. The operating pressure range is 0.5 bar to 10 bar. The temperature range is between -10 °C and 60 °C. Connection thread plug connection Ø 4 mm on the side - suitable for common industry standards. Suitable for filtered compressed air with or without lubrication. If lubricated, then continuous. Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Medium | Filtered compressed air with or without lubrication. If lubricated, then continuous. |
| Sealing material | NBR |
| Series | Reihe VME |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 10 bar |
| Spring | stainless steel |
| Actuating pressure at 6 bar | 8 N |
| Valve body | Aluminum |
| Push button | Nickel-plated brass |
| DN | 2.5 mm |
| Function | 3/2 NC |
| Actuation | monostable |
| Symbol | 4 |
| Execution | manually operated |
| Connection | Push-in connection Ø 4 mm on the side |
| Flow 1 | 35 Nl/min |
| Flow 2 | 60 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Δp 0.5 bar |
| Flow rate measurement 2 | Flow rate at 6 bar and Δp 1.0 bar |
| Class name | PLUS |
