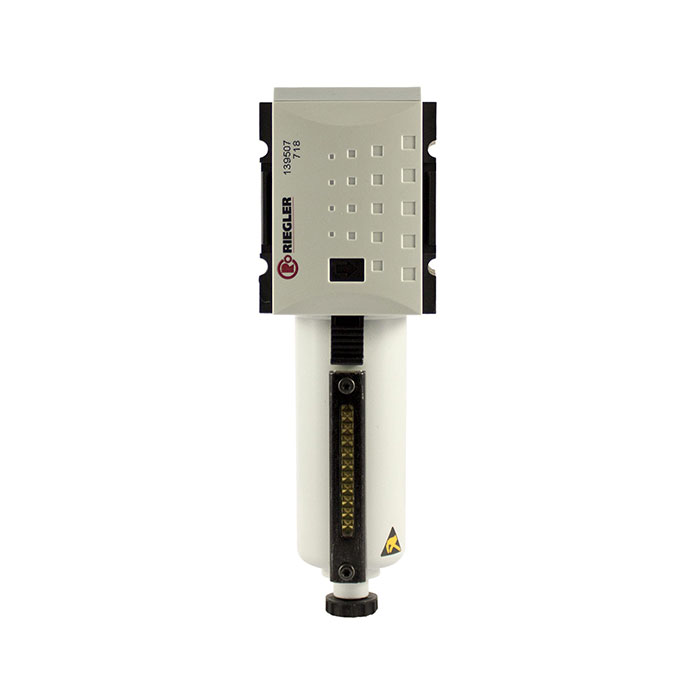

RIEGLER Filter »FUTURA«, Metal container, 5 µm, Size 1, G 1/4, Semi auto.
Typennummer: FU 831-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
FUTURA" filter with metal bowl and sight tube, 5 µm, BG 1, G 1/4, PE 1.5 - 16 bar, temp. -10 °C to 50 °C, condensate drain: HA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/4 |
| Flow rate | 2200 l/min |
| Condensate drain | semi-automatic |
| BG | 1 |
| A | 52 mm |
| B | 164 mm |
| C | 34 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS-No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100131] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 1](/web/image/product.template/123196/image_128/%5B100131%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=e9790aa)
|
Type number: MF 14 |
30.98 € | |
