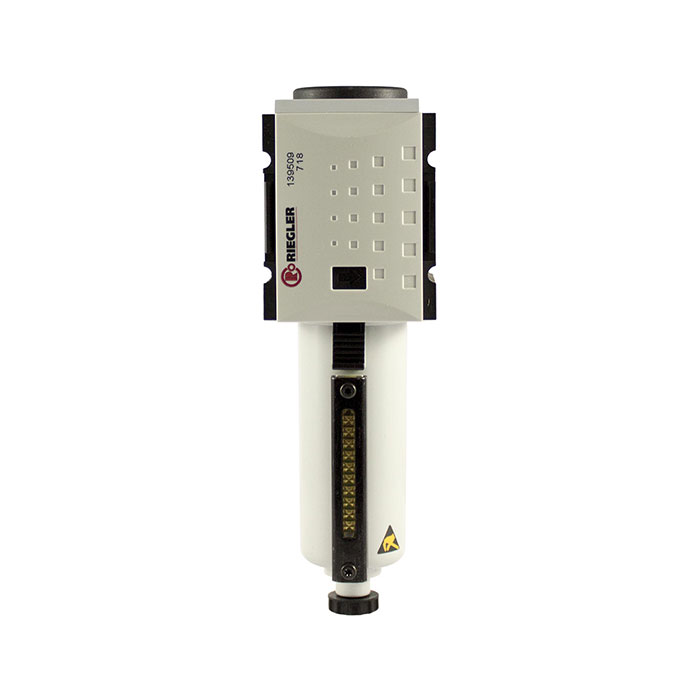

RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 1, G 1/4, Fully
Typennummer: FU 861-M
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Vorfilter »FUTURA«, Metallbehälter und Sichtrohr, 0,3 µm, BG 1, G 1/4, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 1/4 |
| Flow rate | 300 l/min |
| Condensate drain | fully automatic |
| BG | 1 |
| A | 52 mm |
| B | 186.5 mm |
| C | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[156562] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 1, G 1/4, Semi](/web/image/product.template/213330/image_128/%5B156562%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%201-4%2C%20Semi?unique=9c2898d)
|
Typennummer: FU 851-M |
84.74 € | |
![[156567] RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 1, G 3/8, Fully](/web/image/product.template/213335/image_128/%5B156567%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Fully?unique=7158934)
|
Typennummer: FU 862-M |
110.54 € | |
![[156563] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 1, G 3/8, Semi](/web/image/product.template/213331/image_128/%5B156563%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%201%2C%20G%203-8%2C%20Semi?unique=5b76622)
|
Typennummer: FU 852-M |
84.74 € | |
![[156569] RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 2, G 1/2, Fully](/web/image/product.template/213337/image_128/%5B156569%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Fully?unique=15a23c7)
|
Typennummer: FU 864-M |
189.72 € | |
![[139509] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 2, G 1/2, Semi](/web/image/product.template/207989/image_128/%5B139509%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%201-2%2C%20Semi?unique=b6d4587)
|
Type number: FU 854-M |
151.59 € | |
![[156568] RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 2, G 3/8, Fully](/web/image/product.template/213336/image_128/%5B156568%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%203-8%2C%20Fully?unique=86dc6c1)
|
Typennummer: FU 863-M |
189.72 € | |
![[139508] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 2, G 3/8, Semi](/web/image/product.template/207988/image_128/%5B139508%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%202%2C%20G%203-8%2C%20Semi?unique=e7b0656)
|
Type number: FU 853-M |
151.59 € | |
![[156571] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 4, G 1, Fully](/web/image/product.template/213339/image_128/%5B156571%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Fully?unique=1727350)
|
Typennummer: FU 6161-M |
233.84 € | |
![[156565] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 4, G 1, Semi](/web/image/product.template/213333/image_128/%5B156565%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%201%2C%20Semi?unique=f001ff3)
|
Typennummer: FU 6151-M |
189.29 € | |
![[156570] RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 4, G 3/4, Fully](/web/image/product.template/213338/image_128/%5B156570%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%20Fully?unique=2cafd7a)
|
Typennummer: FU 6160-M |
233.84 € | |
![[156564] RIEGLER Pre-filter »FUTURA«, Metal container, 0.3 µm, Size 4, G 3/4, Semi](/web/image/product.template/213332/image_128/%5B156564%5D%20RIEGLER%20Pre-filter%20%C2%BBFUTURA%C2%AB%2C%20Metal%20container%2C%200.3%20%C2%B5m%2C%20Size%204%2C%20G%203-4%2C%20Semi?unique=cd9d80b)
|
Typennummer: FU 6150-M |
189.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100038] Riegler Mounting bracket incl. 2 screws, for »FUTURA«, Size 1](/web/image/product.template/118200/image_128/%5B100038%5D%20Riegler%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=dc49bc0)
|
Type number: H 850 |
11.36 € | |
![[100039] RIEGLER Wall console incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118201/image_128/%5B100039%5D%20RIEGLER%20Wall%20console%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=80c9f12)
|
Type number: WK 100 |
3.42 € | |
![[100040] Riegler Blocking set incl. 2 screws and O-ring, for »FUTURA«, Size 1](/web/image/product.template/118202/image_128/%5B100040%5D%20Riegler%20Blocking%20set%20incl.%202%20screws%20and%20O-ring%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=4ad499c)
|
Type number: KP 100 |
3.40 € | |
![[100130] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 1, Ablass: HA](/web/image/product.template/123195/image_128/%5B100130%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%201%2C%20Ablass:%20HA?unique=8517475)
|
Type number: BSF 14 |
13.80 € | |
![[100131] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 1](/web/image/product.template/123196/image_128/%5B100131%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=75c9f1f)
|
Type number: MF 14 |
51.62 € | |
![[100132] RIEGLER Polycarbonatbehälter inkl. Schutzkorb, FUTURA, BG 1, Ablass: VA](/web/image/product.template/123197/image_128/%5B100132%5D%20RIEGLER%20Polycarbonatbeh%C3%A4lter%20inkl.%20Schutzkorb%2C%20FUTURA%2C%20BG%201%2C%20Ablass:%20VA?unique=31bb8e7)
|
Type number: BSF 14-A |
55.20 € | |
![[100170] Riegler Filter element 0.3 µm, Paper-POM, for semi autom. bleeder valve](/web/image/product.template/123321/image_128/%5B100170%5D%20Riegler%20Filter%20element%200.3%20%C2%B5m%2C%20Paper-POM%2C%20for%20semi%20autom.%20bleeder%20valve?unique=98872c0)
|
Type number: V 23/71 |
68.69 € | |
![[100171] Riegler Differential pressure display, for pre / microfilter](/web/image/product.template/123232/image_128/%5B100171%5D%20Riegler%20Differential%20pressure%20display%2C%20for%20pre%20-%20microfilter?unique=c339f5e)
|
Type number: DAF 1 |
29.18 € | |
![[135851] RIEGLER Wall console with connection thread G 1/4, for »FUTURA«, Size 1](/web/image/product.template/206208/image_128/%5B135851%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=33d7a0b)
|
Type number: WK 101-14 |
29.45 € | |
![[135852] RIEGLER Wall console with connection thread G 3/8, for »FUTURA«, Size 1](/web/image/product.template/206209/image_128/%5B135852%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%203-8%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=cdaa734)
|
Type number: WK 101-38 |
29.45 € | |
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=713ced2)
|
Typennummer: 655.6.901 |
64.69 € | |

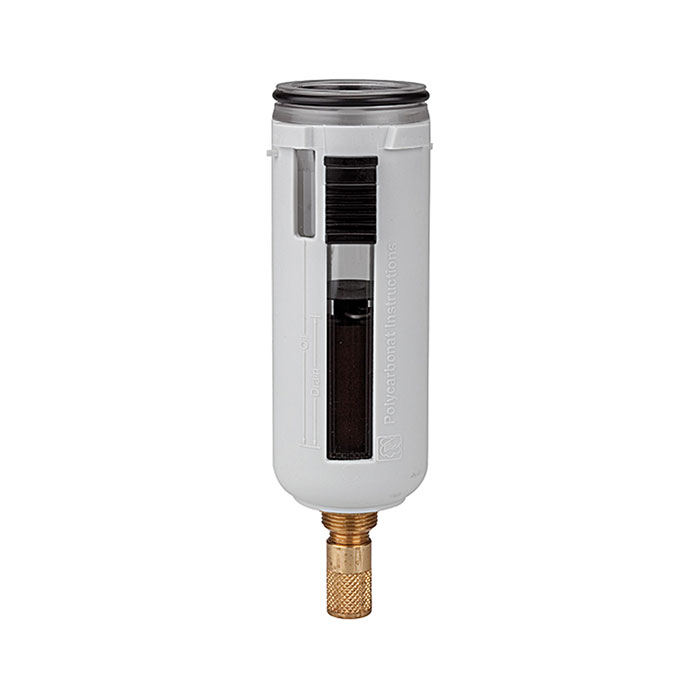

![[156474] RIEGLER Polycarbonate container, »FUTURA«, Size 1, Fully-automatic (NC)](/web/image/product.template/213289/image_128/%5B156474%5D%20RIEGLER%20Polycarbonate%20container%2C%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20Fully-automatic%20%28NC%29?unique=d605bd2)
|
Typennummer: BSF 14-NC-A |
55.03 € | |

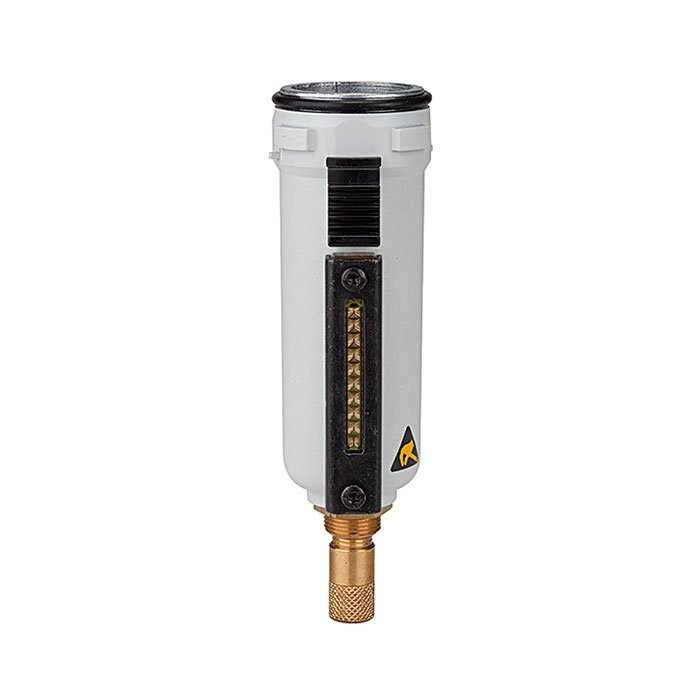

![[156477] RIEGLER Metal container, for »FUTURA«, Size 1, Fully-automatic (NC)](/web/image/product.template/213292/image_128/%5B156477%5D%20RIEGLER%20Metal%20container%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201%2C%20Fully-automatic%20%28NC%29?unique=7e2e994)
|
