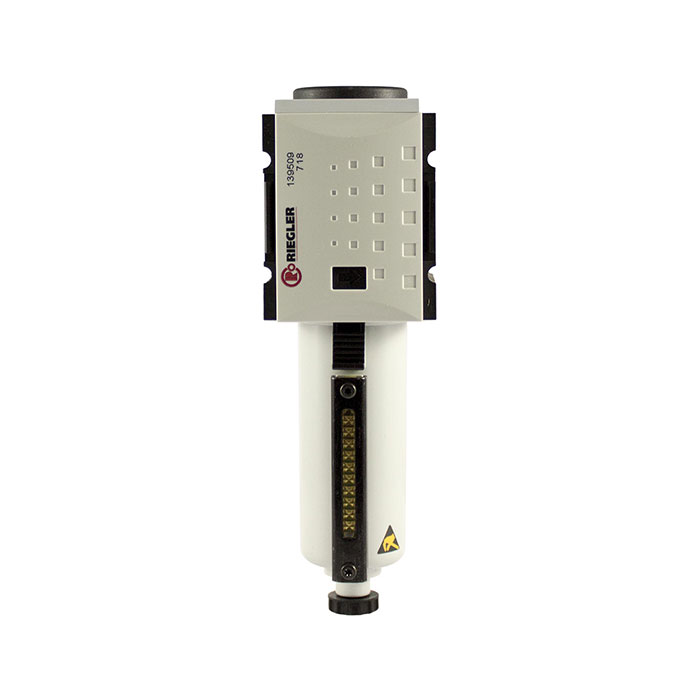

RIEGLER Pre-filter »FUTURA« Metal container, 0.3 µm, Size 1, G 3/8, Fully
Typennummer: FU 862-M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Vorfilter »FUTURA«, Metallbehälter und Sichtrohr, 0,3 µm, BG 1, G 3/8, PE 1,5 - 16 bar, Temp. -10 °C bis 50 °C, Kondensatablass VA
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 16 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Material zinc die-cast |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 0.02 bar |
| Series | FUTURA |
| Container | Metal container with sight tube |
| Filter element | Impregnated paper |
| Filter fineness | 0.3 µm |
| Thread | G 3/8 |
| Flow rate | 300 l/min |
| Condensate drain | fully automatic |
| BG | 1 |
| A | 52 mm |
| B | 186.5 mm |
| C | 39.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6a-I, 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=ce1aa1d)
|
Type number: 655.6.900 |
36.35 € | |
![[100169] Riegler Filter element 0.3 µm, Paper-POM, for fully autom. bleeder valve](/web/image/product.template/123320/image_128/%5B100169%5D%20Riegler%20Filter%20element%200.3%20%C2%B5m%2C%20Paper-POM%2C%20for%20fully%20autom.%20bleeder%20valve?unique=0506a00)
|
Type number: V 23/40 |
51.25 € | |
![[100133] Riegler Metal container incl. viewing tube, for »FUTURA«, Size 1](/web/image/product.template/123198/image_128/%5B100133%5D%20Riegler%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBFUTURA%C2%AB%2C%20Size%201?unique=717fb35)
|
Type number: MF 14-A |
55.93 € | |
