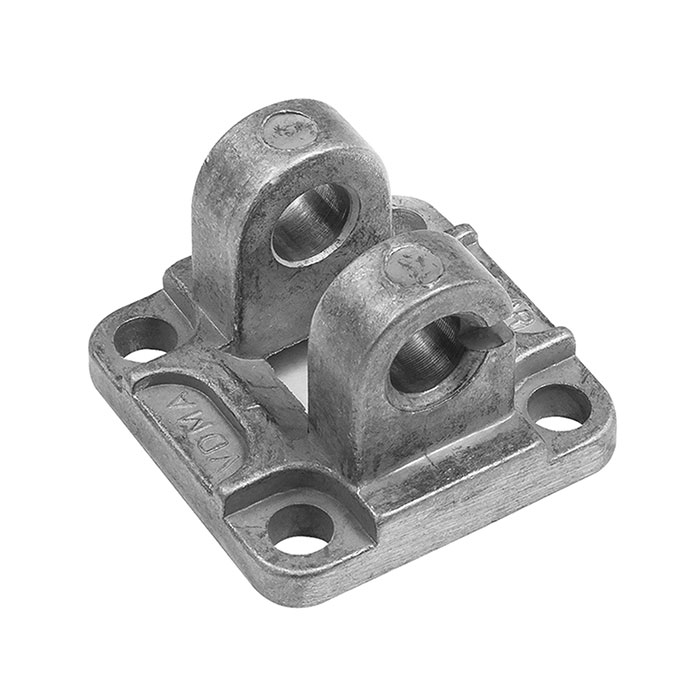

RIEGLER Female hinge model for articulated male hinge model, Ø160
Typennummer: 453.030
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel fork attachment for sph. made of aluminum - Type 453.030
The RIEGLER swivel fork mounting for spherical swivel eye mounting, Ø160 enables the flexible and secure mounting of pneumatic cylinders. The housing is made of aluminum. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Material | Aluminum |
| Application | for spherical swivel eye mounting |
| Execution | with 4 screws, 1 bolt and lock |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| for cylinders | ISO 15552 |
| suitable for piston Ø | 160 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
