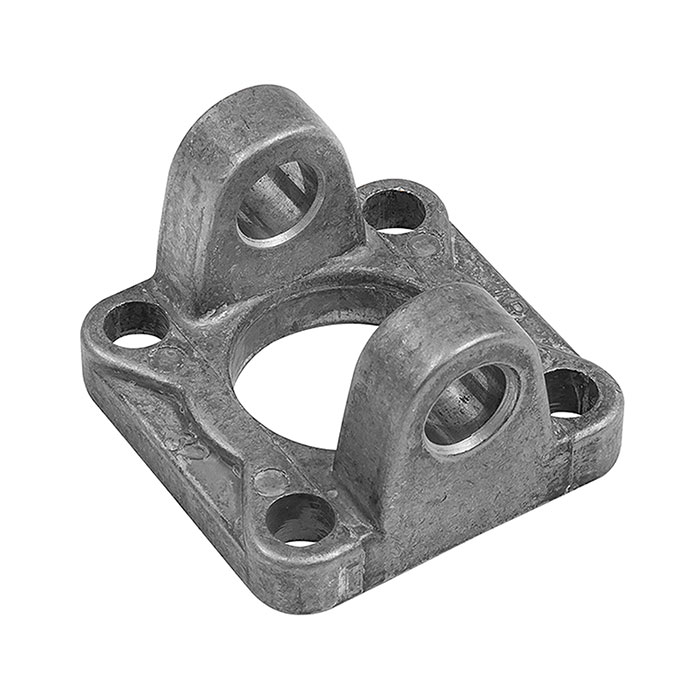

RIEGLER Female hinge model, CETOP, Ø100
Typennummer: 453.140
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel fork mounting made of aluminum, for automation technology - Type 453.140
The RIEGLER swivel fork attachment, CETOP, Ø100 enables flexible and secure mounting of pneumatic cylinders. The housing is made of aluminum. Flexible mounting options for various installation positions.
Field of application
Typical areas of application: Cylinder assembly on machines, frames and systems.
| Material | Aluminum |
| Execution | with 4 screws, 1 bolt and lock |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| for cylinders | CETOP |
| suitable for piston Ø | 100 mm |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
