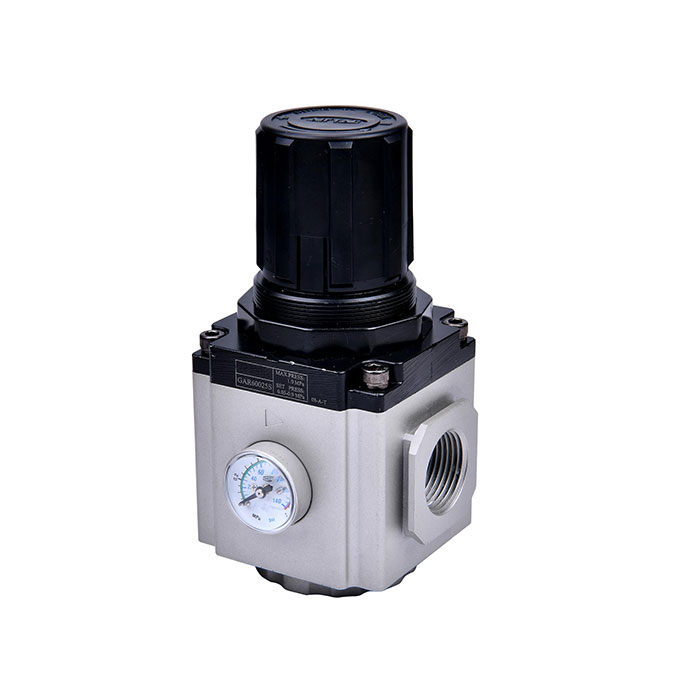

RIEGLER Pressure regulator »GA«, Size 600, G 1, 0.5 - 9 bar
Typennummer: GAR 55
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pressure regulator "GA" made of die-cast aluminum, for compressed air preparation, 0.5 bar - Type GAR 55
The RIEGLER pressure regulator "GA", incl. pressure gauge, BG 600, G 1, 0.5 - 9 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast aluminum with NBR seals. The control range extends from 0.5 bar to 9 bar with a maximum inlet pressure of 10 bar. The temperature range is between -20 °C and 70 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 6000 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Spring cover | Aluminum alloy |
| Thread | G 1 |
| Flow rate | 6000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 9 bar |
| BG | 600 |
| A | 100 mm |
| B | 179.5 mm |
| C | 129 mm |
| D | 50.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178451] RIEGLER Pressure regulator »GA«, Size 300, G 1/2, 0.5 - 9 bar](/web/image/product.template/216341/image_128/%5B178451%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20300%2C%20G%201-2%2C%200.5%20-%209%20bar?unique=fbcc600)
|
Typennummer: GAR 13 |
31.07 € | |
![[178449] RIEGLER Pressure regulator »GA«, Size 300, G 1/4, 0.5 - 9 bar](/web/image/product.template/216339/image_128/%5B178449%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20300%2C%20G%201-4%2C%200.5%20-%209%20bar?unique=e75ffff)
|
Typennummer: GAR 11 |
31.07 € | |

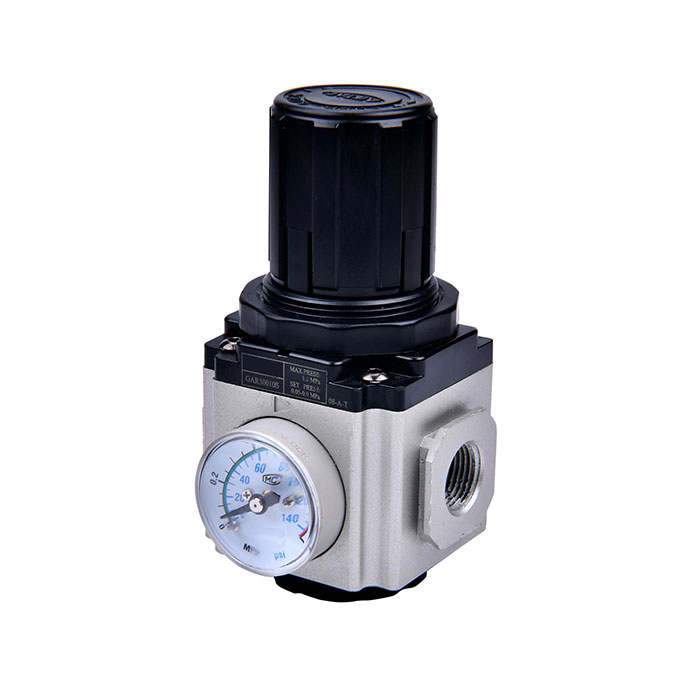

![[178450] RIEGLER Pressure regulator »GA«, Size 300, G 3/8, 0.5 - 9 bar](/web/image/product.template/216340/image_128/%5B178450%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20300%2C%20G%203-8%2C%200.5%20-%209%20bar?unique=85e84fa)
|
Typennummer: GAR 12 |
31.07 € | |
![[178453] RIEGLER Pressure regulator »GA«, Size 400, G 1/2, 0.5 - 9 bar](/web/image/product.template/216343/image_128/%5B178453%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20400%2C%20G%201-2%2C%200.5%20-%209%20bar?unique=31fe730)
|
Typennummer: GAR 33 |
48.09 € | |
![[178452] RIEGLER Pressure regulator »GA«, Size 400, G 3/8, 0.5 - 9 bar](/web/image/product.template/216342/image_128/%5B178452%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20400%2C%20G%203-8%2C%200.5%20-%209%20bar?unique=51535b2)
|
Typennummer: GAR 32 |
48.09 € | |
![[178454] RIEGLER Pressure regulator »GA«, Size 600, G 3/4, 0.5 - 9 bar](/web/image/product.template/216344/image_128/%5B178454%5D%20RIEGLER%20Pressure%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20600%2C%20G%203-4%2C%200.5%20-%209%20bar?unique=c826828)
|
Typennummer: GAR 34 |
72.29 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101677] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 10 bar/145 psi](/web/image/product.template/169649/image_128/%5B101677%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2010%20bar-145%20psi?unique=1886a70)
|
Type number: 206-KD |
6.25 € | |

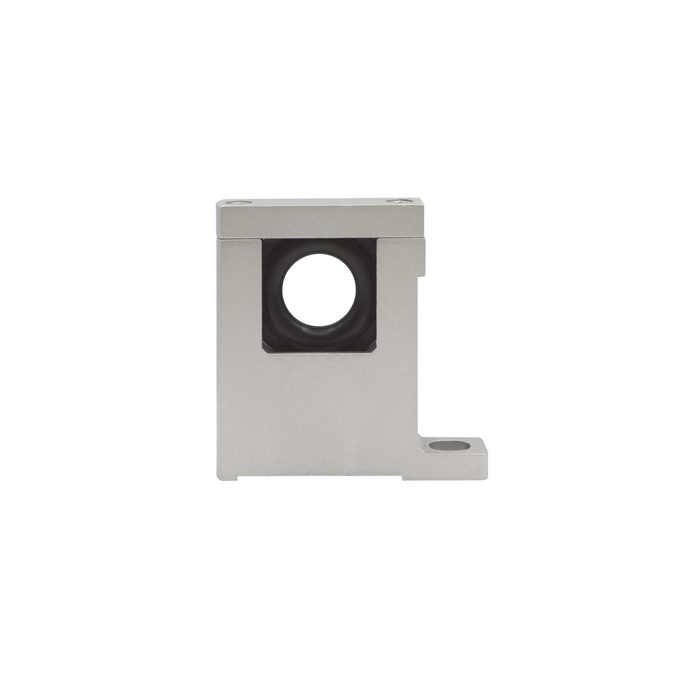

![[116518] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201218/image_128/%5B116518%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=7fde26b)
|
Type number: LB 600 |
15.23 € | |

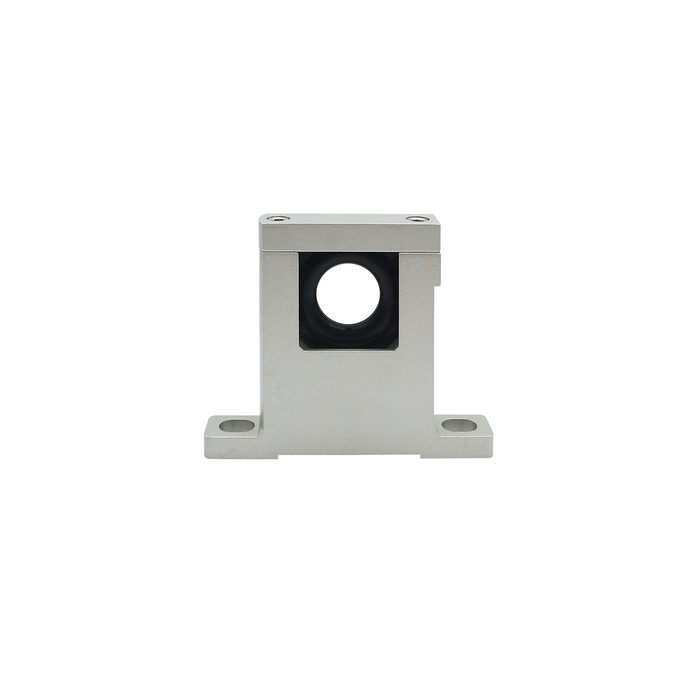

![[116611] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202329/image_128/%5B116611%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=13848a5)
|
Type number: TB 600 |
15.23 € | |

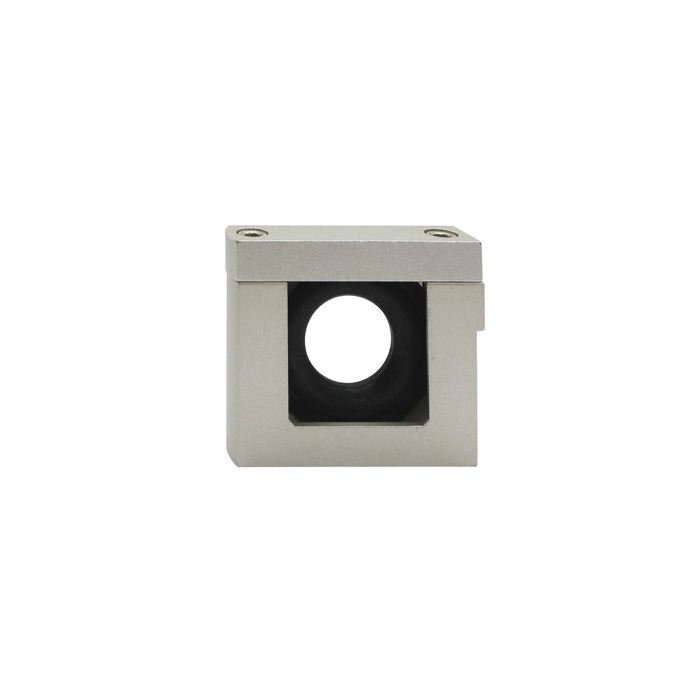

![[116615] RIEGLER Connecting element without wall mounting, U-shaped band, size 600](/web/image/product.template/202333/image_128/%5B116615%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20600?unique=925aaf9)
|
Type number: UB 600 |
15.93 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[179142] RIEGLER Adapter plate for standard pressure gauges, GA size 400, size 600](/web/image/product.template/216412/image_128/%5B179142%5D%20RIEGLER%20Adapter%20plate%20for%20standard%20pressure%20gauges%2C%20GA%20size%20400%2C%20size%20600?unique=327db26)
|
Typennummer: GAR 32 120 |
2.44 € | |

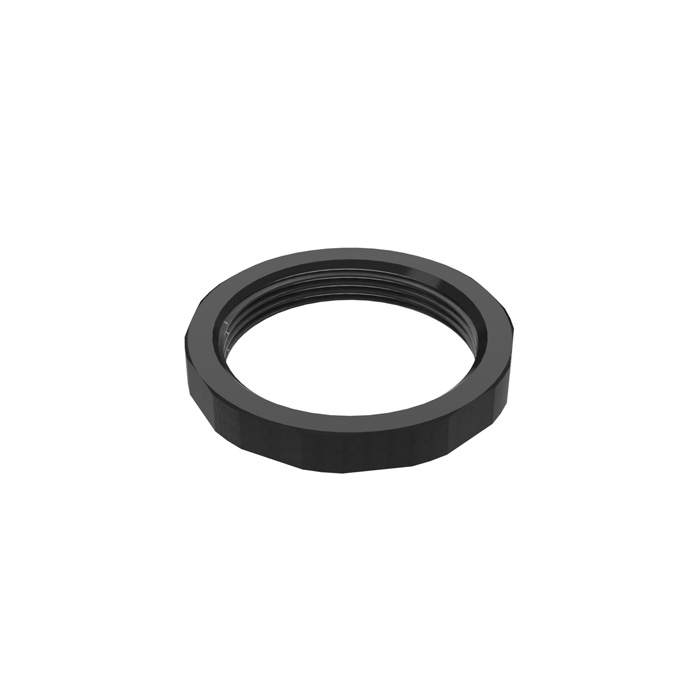

![[129877] RIEGLER Fastening nut 62x1.5, POM, for maintenance unit "GA", BG 600](/web/image/product.template/273091/image_128/%5B129877%5D%20RIEGLER%20Fastening%20nut%2062x1.5%2C%20POM%2C%20for%20maintenance%20unit%20%22GA%22%2C%20BG%20600?unique=163e48b)
|
Type number: GAM600 |
1.65 € | |

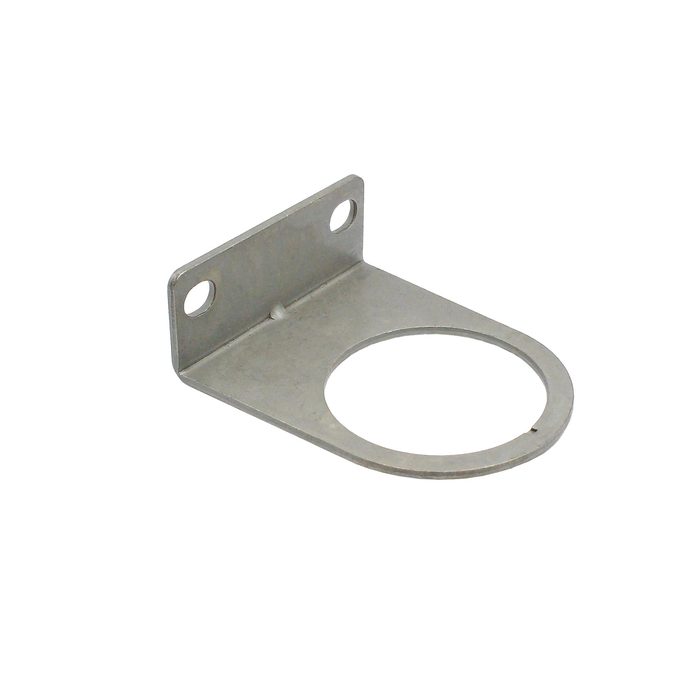

![[116486] RIEGLER Mounting bracket, for »G«/»GA«, size 600](/web/image/product.template/201213/image_128/%5B116486%5D%20RIEGLER%20Mounting%20bracket%2C%20for%20%C2%BBG%C2%AB-%C2%BBGA%C2%AB%2C%20size%20600?unique=98314e7)
|
