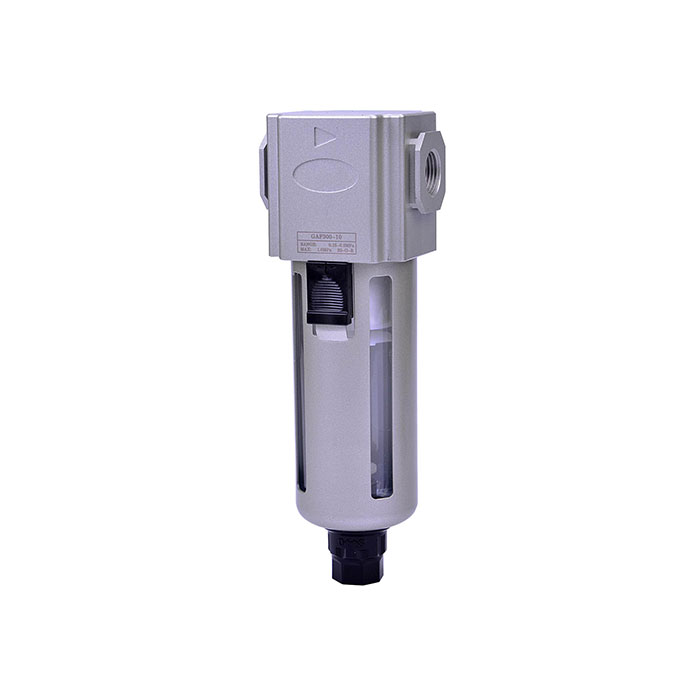

RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 1/4
Typennummer: GAF 11 A
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER GA" filter made of die-cast aluminum, for compressed air treatment, max. 9 bar - type GAF 11 A
The RIEGLER filter "GA", PC-treated, protective cage, 5 µm, BG 300, G 1/4, drain: VA removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of die-cast aluminum with NBR seals. The operating pressure range is 1.5 bar to 9 bar. The temperature range is between -5 °C and 70 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 2650 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, polycarbonate container with protective cage. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 5 µm |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 1/4 |
| Flow rate | 2650 l/min |
| Condensate drain | fully automatic |
| BG | 300 |
| A | 62.5 mm |
| B | 197 mm |
| C | 39 mm |
| D | 158 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178463] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 1/2](/web/image/product.template/216353/image_128/%5B178463%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-2?unique=6bcd3df)
|
Typennummer: GAF 13 A |
55.47 € | |
![[178458] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 1/2](/web/image/product.template/216348/image_128/%5B178458%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-2?unique=4a8b5e7)
|
Typennummer: GAF 13 |
21.00 € | |
![[178456] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 1/4](/web/image/product.template/216346/image_128/%5B178456%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%201-4?unique=39260e8)
|
Typennummer: GAF 11 |
21.00 € | |
![[178462] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 3/8](/web/image/product.template/216352/image_128/%5B178462%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%203-8?unique=eb6a6cd)
|
Typennummer: GAF 12 A |
55.47 € | |
![[178457] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 300, G 3/8](/web/image/product.template/216347/image_128/%5B178457%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20300%2C%20G%203-8?unique=0b61e97)
|
Typennummer: GAF 12 |
21.00 € | |
![[178465] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 400, G 1/2](/web/image/product.template/216355/image_128/%5B178465%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%201-2?unique=c88db91)
|
Typennummer: GAF 33 A |
70.79 € | |
![[178460] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 400, G 1/2](/web/image/product.template/216350/image_128/%5B178460%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%201-2?unique=54f62ec)
|
Typennummer: GAF 33 |
39.32 € | |
![[178464] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 400, G 3/8](/web/image/product.template/216354/image_128/%5B178464%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%203-8?unique=8b402a6)
|
Typennummer: GAF 32 A |
70.79 € | |
![[178459] RIEGLER Filter »GA«, PC container, Protective cage, 5 µm, Size 400, G 3/8](/web/image/product.template/216349/image_128/%5B178459%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20PC%20container%2C%20Protective%20cage%2C%205%20%C2%B5m%2C%20Size%20400%2C%20G%203-8?unique=b8bc81f)
|
Typennummer: GAF 32 |
39.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116516] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201216/image_128/%5B116516%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=0ad9100)
|
Type number: LB 300 |
6.66 € | |
![[116609] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202327/image_128/%5B116609%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=b65cdff)
|
Type number: TB 300 |
6.66 € | |
![[116613] RIEGLER Connecting element without wall mounting, U-shaped band, size 300](/web/image/product.template/202331/image_128/%5B116613%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20300?unique=e46908b)
|
Type number: UB 300 |
7.96 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[179146] RIEGLER Filter element 5 µm, filter / filter regulator »GA«, Size 300](/web/image/product.template/216416/image_128/%5B179146%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20filter%20-%20filter%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20300?unique=2c8d459)
|
Typennummer: GAF 11 400 |
6.66 € | |

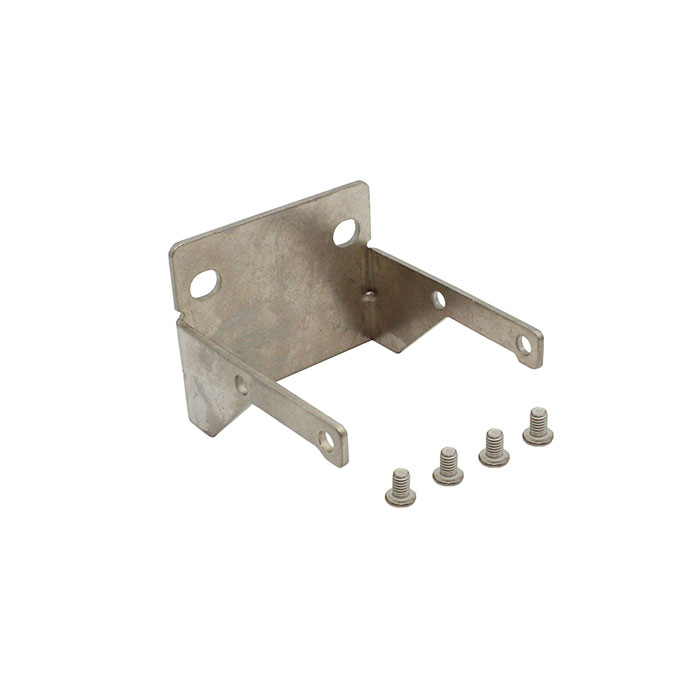

![[179148] RIEGLER Mounting bracket incl. 4 screws, «GA», size 300](/web/image/product.template/216418/image_128/%5B179148%5D%20RIEGLER%20Mounting%20bracket%20incl.%204%20screws%2C%20%C2%ABGA%C2%BB%2C%20size%20300?unique=53fdb57)
|
