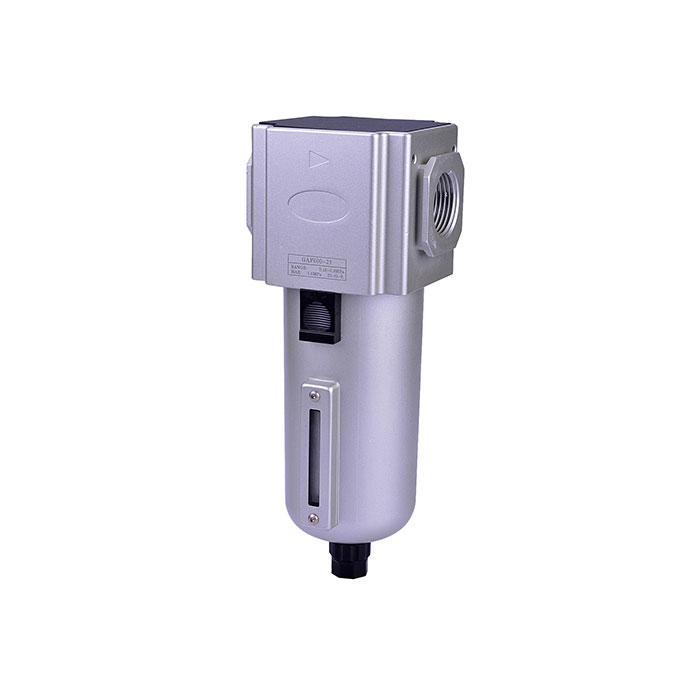

RIEGLER Filter »GA«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4
Typennummer: GAF 34
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter »GA« metal container, Viewing tube, Mounting bracket, 5 µm, Size 600, G3/4, Input pres. max 10 bar, Working pres. 1.5-9 bar
| Inlet pressure max. | 10 bar |
| Temperature range min. | -5 °C |
| Temperature range max. | 70 °C |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2 </sub>= 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | GA |
| Container | Metal container with sight tube |
| Filter fineness | 5 µm |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 9 bar |
| Thread | G 3/4 |
| Flow rate | 10500 l/min |
| Condensate drain | semi-automatic |
| BG | 600 |
| A | 100 mm |
| B | 266 mm |
| C | 61 mm |
| D | 205 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[178467] RIEGLER Filter »GA«, Metal container, Viewing tube, 5 µm, Size 600, G 1](/web/image/product.template/216357/image_128/%5B178467%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%205%20%C2%B5m%2C%20Size%20600%2C%20G%201?unique=7b1be99)
|
Typennummer: GAF 55 |
80.85 € | |
![[178469] RIEGLER Filter »GA«, Metal container, Viewing tube, 5 µm, Size 600, G 1](/web/image/product.template/216359/image_128/%5B178469%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%205%20%C2%B5m%2C%20Size%20600%2C%20G%201?unique=7c5e9aa)
|
Typennummer: GAF 55 A |
104.97 € | |
![[178468] RIEGLER Filter »GA«, Metal container, Viewing tube, 5 µm, Size 600, G 3/4](/web/image/product.template/216358/image_128/%5B178468%5D%20RIEGLER%20Filter%20%C2%BBGA%C2%AB%2C%20Metal%20container%2C%20Viewing%20tube%2C%205%20%C2%B5m%2C%20Size%20600%2C%20G%203-4?unique=c735fbb)
|
Typennummer: GAF 34 A |
104.97 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116518] RIEGLER Connecting element with wall mounting, 1 hole, L-shaped bracket](/web/image/product.template/201218/image_128/%5B116518%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%201%20hole%2C%20L-shaped%20bracket?unique=e8f8228)
|
Type number: LB 600 |
15.32 € | |
![[116611] RIEGLER Connecting element with wall mounting, 2 holes, T-shaped bracket](/web/image/product.template/202329/image_128/%5B116611%5D%20RIEGLER%20Connecting%20element%20with%20wall%20mounting%2C%202%20holes%2C%20T-shaped%20bracket?unique=a8aa796)
|
Type number: TB 600 |
15.32 € | |
![[116615] RIEGLER Connecting element without wall mounting, U-shaped band, size 600](/web/image/product.template/202333/image_128/%5B116615%5D%20RIEGLER%20Connecting%20element%20without%20wall%20mounting%2C%20U-shaped%20band%2C%20size%20600?unique=65edd30)
|
Type number: UB 600 |
16.02 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[179143] RIEGLER Filter element 5 µm, filter / filter regulator »GA«, Size 600](/web/image/product.template/216413/image_128/%5B179143%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20filter%20-%20filter%20regulator%20%C2%BBGA%C2%AB%2C%20Size%20600?unique=990cd4e)
|
Typennummer: GAF 34 400 |
29.93 € | |
