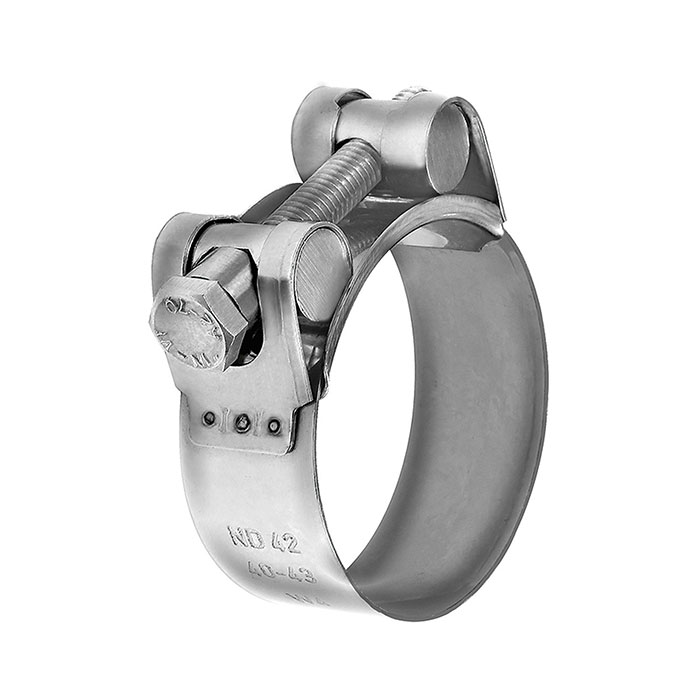

RIEGLER Hinge pin clamp, Stainless steel 1.4301 (W4), 48 - 51 mm, 22 mm
Type number: GBS51ES
EAN: 4047322689687
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Hinge pin clamp, stainless steel 1.4301 (W4), clamping range 48 - 51 mm, band width 22 mm, rec. Tightening torque 9.0 Nm
| Housing | Stainless steel 1.4301 (W4) |
| Steel strap | Stainless steel 1.4301 (W4) |
| Screw | Stainless steel 1.4301 (W4) |
| Bolt | Stainless steel 1.4301 (W4) |
| Clamping range min. | 48 mm |
| Clamping range max. | 51 mm |
| Bandwidth | 22 mm |
| recomm. Tightening torque | 9 Nm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
