RIEGLER Pre-filter G3/8 without differential pressure gauge, 1 µm
Typennummer: 4381121
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Pre-filter made of aluminum, for compressed air treatment, G 3/8 - type 4381121
The RIEGLER pre-filter G3/8 without differential pressure gauge, 1 µm removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of aluminum. The maximum inlet pressure is 12 bar. The permissible medium temperature is between 1.5 °C and 80 °C. Connection thread G 3/8 - suitable for common industry standards. Filter fineness 1 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| Inlet pressure min. | 4 bar |
| Inlet pressure max. | 12 bar |
| Housing | Aluminum |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> = 0.1 bar |
| Filter element | Borosilicate microfiberglass fabric |
| Filter fineness | 1 µm |
| Residual oil content | 0.5 mg/m³ |
| Medium temperature min. | 1.5 °C |
| Medium temperature max. | 80 °C |
| Ambient temperature min. | 1.5 °C |
| Ambient temperature max. | 80 °C |
| Efficiency | 99.99 % |
| Particle separation | 1 µm |
| Filter container | Aluminum |
| Thread | G 3/8 |
| Flow 1 | 1000 l/min |
| A | 80 mm |
| C | 23.5 mm |
| D | 327 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| SCIP message number Supplier | no SCIP No. available |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| SCIP message number RIEGLER | no SCIP No. available |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | PLUS |
| Stand Material Compliance | 45406 |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[199804] RIEGLER Pre-filter G1/2 without differential pressure gauge, 1 µm](/web/image/product.template/267982/image_128/%5B199804%5D%20RIEGLER%20Pre-filter%20G1-2%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m?unique=02bf28b)
|
Typennummer: 4381131 |
420.72 € | |
![[199800] RIEGLER Pre-filter G1/4 without differential pressure gauge, 1 µm](/web/image/product.template/267981/image_128/%5B199800%5D%20RIEGLER%20Pre-filter%20G1-4%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m?unique=905e693)
|
Typennummer: 4381111 |
420.72 € | |

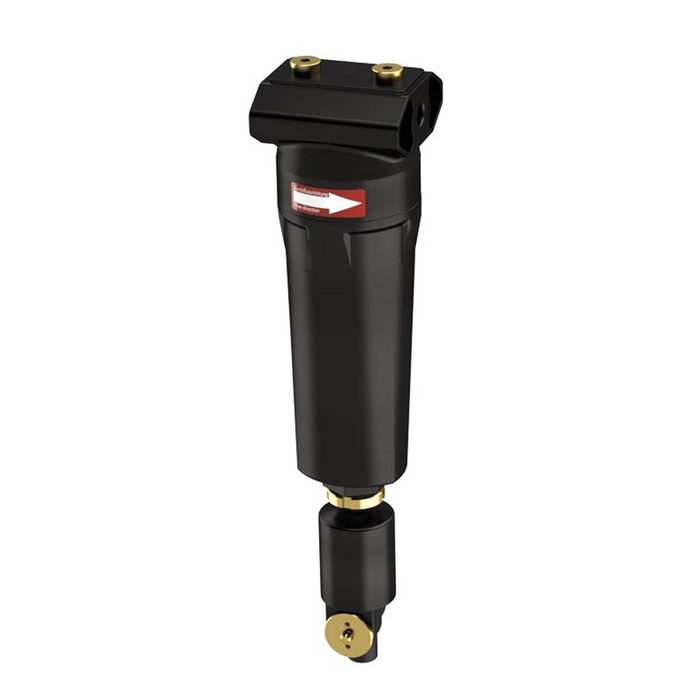

![[199806] RIEGLER Pre-filter G3/4 without differential pressure gauge, 1 µm](/web/image/product.template/267993/image_128/%5B199806%5D%20RIEGLER%20Pre-filter%20G3-4%20without%20differential%20pressure%20gauge%2C%201%20%C2%B5m?unique=2b91356)
|
Typennummer: 4381241 |
475.23 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116966] RIEGLER Connection set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274715/image_128/%5B116966%5D%20RIEGLER%20Connection%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=d7aac4f)
|
Type number: 438412 |
27.43 € | |
![[116967] RIEGLER Connection set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274716/image_128/%5B116967%5D%20RIEGLER%20Connection%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=4758925)
|
Type number: 438413 |
45.47 € | |
![[116972] RIEGLER Wall mounting set for 1 filter G 1/4 to G 1/2](/web/image/product.template/274719/image_128/%5B116972%5D%20RIEGLER%20Wall%20mounting%20set%20for%201%20filter%20G%201-4%20to%20G%201-2?unique=3c22613)
|
Type number: 438511 |
67.20 € | |
![[116974] RIEGLER Wall mounting set for 2 filters G 1/4 to G 1/2](/web/image/product.template/274720/image_128/%5B116974%5D%20RIEGLER%20Wall%20mounting%20set%20for%202%20filters%20G%201-4%20to%20G%201-2?unique=602ca79)
|
Type number: 438512 |
80.55 € | |
![[116975] RIEGLER Wall mounting set for 3 filters G 1/4 to G 1/2](/web/image/product.template/274721/image_128/%5B116975%5D%20RIEGLER%20Wall%20mounting%20set%20for%203%20filters%20G%201-4%20to%20G%201-2?unique=3ade60b)
|
Type number: 438513 |
90.49 € | |
![[116979] RIEGLER Differential pressure gauge for prefilters, microfilters and activated charcoal filters](/web/image/product.template/274725/image_128/%5B116979%5D%20RIEGLER%20Differential%20pressure%20gauge%20for%20prefilters%2C%20microfilters%20and%20activated%20charcoal%20filters?unique=8c02c8a)
|
Type number: 438600 |
153.22 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101602] RIEGLER Automatic bleeder valve A, G 1/4 IT / G 1/8 ET](/web/image/product.template/169576/image_128/%5B101602%5D%20RIEGLER%20Automatic%20bleeder%20valve%20A%2C%20G%201-4%20IT%20-%20G%201-8%20ET?unique=473d90b)
|
Type number: 65/0-S |
67.21 € | |

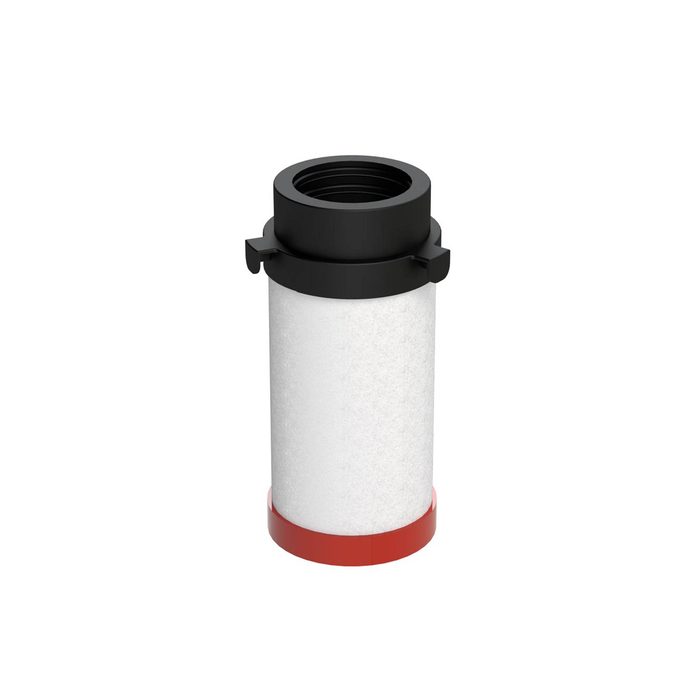

![[116980] RIEGLER Filter element for pre-filter G 1/4, G 3/8](/web/image/product.template/274726/image_128/%5B116980%5D%20RIEGLER%20Filter%20element%20for%20pre-filter%20G%201-4%2C%20G%203-8?unique=5af8df9)
|
