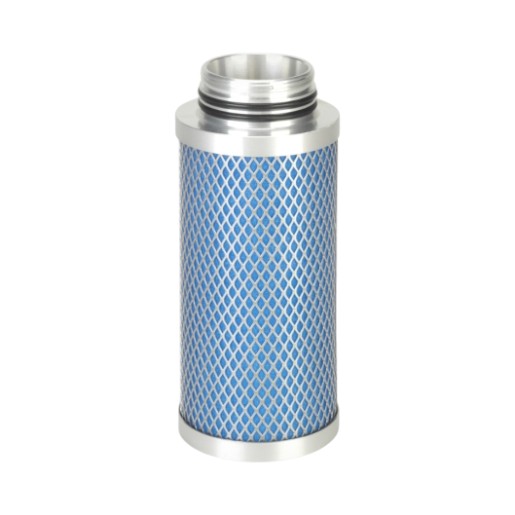

Donaldson filter element, SMF 07/30 ultrapleat
Nominal flow rate at 7 bar: 480 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
UltraPleat® sub-microfilter for oil separation - ultra-fine compressed air filtration
The Donaldson Filter element SMF 07/30 ultrapleat is a highly efficient sub-microfilter and coalescence filter for oil separation in compressed air with innovative UltraPleat® technology. This Donaldson filter element offers the finest oil separation with a residual oil content ≤0.01 mg/m³ - the premium solution for the highest compressed air quality. The pleated 3D borosilicate glass fiber fleece offers maximum filter surface area with minimum pressure loss for efficient compressed air treatment in accordance with ISO 8573-1.
Performance data & filtration properties
- Filtration type: UltraPleat® sub-microfilter for oil separation in compressed air - finest filter stage.
- Nominal flow rate: 480 m³/h at 7 bar operating pressure - suitable for AG/SG/HD compressed air filter housings.
- Oil separation: Residual oil content ≤0.01 mg/m³ - for the highest compressed air quality in accordance with ISO 8573-1 Class 1.
- Particle separation: 99.99999 % at 0.01 µm - sub-micron filtration for the most demanding processes.
- Energy efficiency: Pleated filter surface for minimal pressure loss and lower energy costs.
- Validated quality: Tested according to ISO 12500-1 and ISO 12500-3 - compressed air quality according to ISO 8573-1.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers - maximum filter surface.
- Coalescent sheath: Fixed polyester fleece for permanently stable structure and fluid drainage.
- Support structure: Stainless steel support shells (1.4301/304) to protect against pressure surges.
- End caps: Aluminum - robust and corrosion-resistant for a long service life.
- Sealing: NBR O-rings (silicone and release agent-free) for a leak-free fit.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 07/30). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Central compressed air treatment: Sub-microfilter for oil separation for the highest compressed air quality.
- Food and pharmaceutical industry: Ultra-fine oil separation for contamination-free compressed air.
- Electronics production: Sub-micron filtration for semiconductor and cleanroom production.
- End-point filtration: Compressed air filters for instrument and process air with the highest purity requirements.
- Medical technology: Oil-free compressed air for medical devices and applications.
| Filter type | SMF: UltraPleat™ submicron filter |
| Nominal flow rate at 7 bar (m³/h) | 480 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
