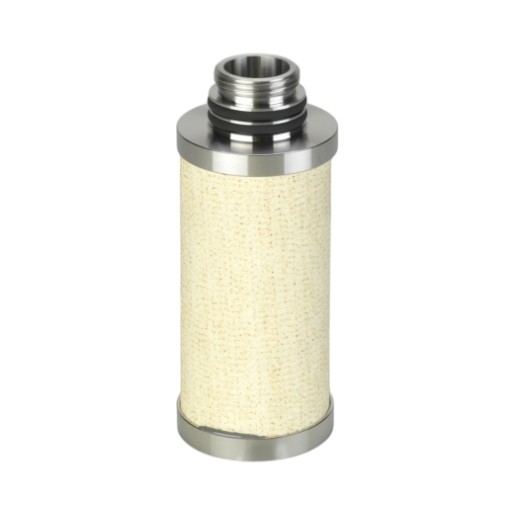

Donaldson filter element, MF 04/20 HTNX
Nominal flow rate at 7 bar: 120 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
High-temperature coalescing filter for oil separation HTNX - UltraPleat® with Nomex® up to 180 °C
The Donaldson Filter element MF 04/20 HTNX is a high-performance high-temperature compressed air filter and coalescence filter for oil separation with UltraPleat® technology for operating temperatures up to 180 °C. This Donaldson filter element offers a residual oil content of ≤0.06 mg/m³ and a temperature-resistant Nomex® drainage layer. Highly efficient compressed air treatment even at extreme temperatures.
Performance data & filtration properties
- Filtration type: High temperature coalescing filter for oil separation (HTNX) with UltraPleat® and Nomex®.
- Nominal flow rate: 120 m³/h at 7 bar operating pressure.
- Temperature resistance: Can be used up to 180 °C thanks to Nomex® fabric.
- Oil separation: Oil separation efficiency 99.4 %. Residual oil content ≤0.06 mg/m³.
- Particle separation: 99.99998 % at 0.01 µm.
- Validated quality: Tested according to ISO 12500-1 and ISO 12500-3.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D borosilicate glass fiber fleece for maximum oil separation.
- Nomex® drainage layer: Temperature-resistant high-performance fabric for high-temperature use.
- Support structure: Stainless steel support shells (1.4301/304) against pressure surges.
- End caps: Aluminum - robust and corrosion-resistant.
- Sealing: NBR O-rings for a leak-free fit in the filter housing.
System compatibility
- Suitable for: This Donaldson filter element is designed as a replacement filter for Donaldson compressed air filter housings of the AG/SG/HD series (size 04/20). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Central compressed air treatment: Coalescence filter for oil separation and pre-filter to protect dryers.
- End-point filtration: Compressed air filter for control, instrument and process air.
- Food and pharmaceutical industry: Oil separation for contamination-free compressed air.
- Automotive industry: Compressed air treatment for painting and assembly processes.
- Electronics production: Oil-free compressed air for semiconductor and PCB production.
| Filter type | MF HTNX: Microfilter (high temperature) |
| Nominal flow rate at 7 bar (m³/h) | 120 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
