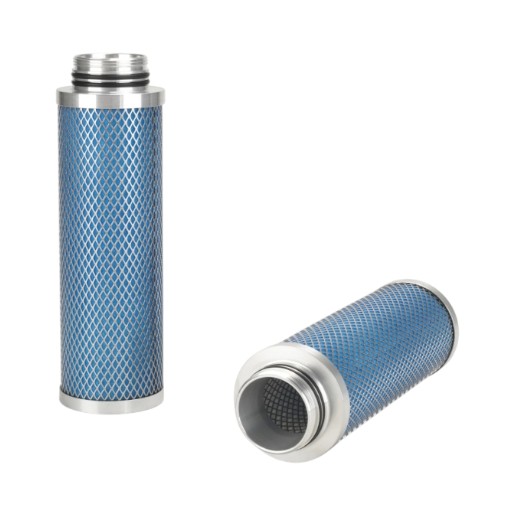

Donaldson filter element, FFP 04/20, silicone-free
Nominal flow rate at 7 bar: 120 m³/h
Donaldson has been developing innovative solutions for complex filtration requirements for over 100 years. As one of the world's leading suppliers, the company offers state-of-the-art filtration technologies as well as high-quality filters and spare parts for a wide range of industries
Silicone-free compressed air filter & particle filter - for contamination-free painting and process air
The Donaldson Filter element FFP 04/20 silicone-free is a highly efficient silicone-free compressed air filter and particle filter with Viton seals (FKM). This Donaldson filter element is used for the reliable separation of solid particles from compressed air and technical gases. The pleated UltraPleat® filter medium made of borosilicate glass fibers offers outstanding dirt holding capacity at minimum differential pressure - the ideal choice for compressed air treatment in the automotive industry and painting technology.
Performance data & filtration properties
- Filtration type: Silicone-free particle filter and compressed air filter with UltraPleat® technology for contamination-free compressed air.
- Nominal flow rate: 120 m³/h at 7 bar operating pressure - suitable for your compressed air system.
- Particle separation: 99.999 % at 0.01 µm - highest compressed air quality for painting processes and sensitive manufacturing.
- Silicone-free: Viton seals (FKM) and silicone-free materials - no contamination of sensitive surfaces.
- Energy efficiency: Pleated filter element with minimal pressure loss and reduced energy costs.
- Validated quality: Tested according to ISO 12500-3 (particle separation) - reliable compressed air quality according to ISO 8573-1.
High-quality structure of the element
- UltraPleat® filter medium: Pleated 3D microfiber fleece made of borosilicate glass fibers - maximum filter surface with minimum pressure loss.
- Robust support structure: Stainless steel support sleeves (1.4301/304) protect the filter element against pressure surges.
- Silicone-free Viton seals: FKM O-rings for a leak-free and contamination-free fit in the compressed air filter housing.
- High-quality materials: Aluminum end caps and stainless steel for optimum corrosion protection and a long service life.
- Process reliability: All materials silicone-free - safe compressed air filter for maximum painting quality.
System compatibility
- Suitable for: This Donaldson filter element is designed as a silicone-free replacement filter for Donaldson compressed air filter housings in the AG, SG and HD series (size 04/20). Precisely fitting filter cartridge for easy replacement.
Typical areas of application
- Painting and coating technology: Silicone-free compressed air filter for the highest painting quality in the automotive industry.
- Central compressed air treatment: Particle filter to protect refrigeration and adsorption dryers in silicone-free processes.
- End-point filtration: Silicone-free filter element for control, instrument and process air.
- Particle retention: Compressed air filter downstream of adsorption dryers or activated carbon adsorbers.
| Filter type | FFP: Fine Filter Plus |
| Nominal flow rate at 7 bar (m³/h) | 120 |
| Element type | AG, SG und HD Element |
| Connection type | UF threaded end |
