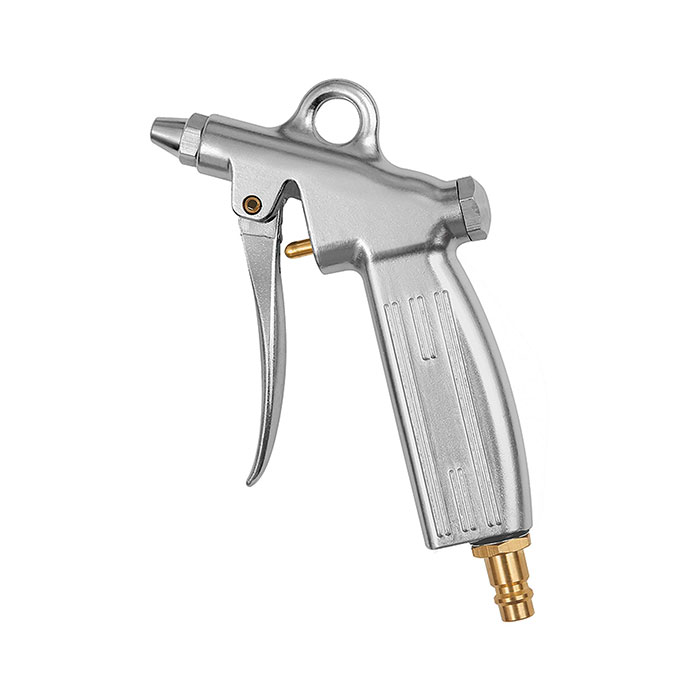

RIEGLER metering blow gun, standard nozzle, nickel-plated die-cast aluminum, NW 7.2
Type number: DBPN72
EAN: 4047322697934
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Metering blow gun, standard nozzle bore 1.5 mm, nickel-plated die-cast aluminum, temp. -10 °C to 50 °C, PN max. 10 bar, nipple NW 7.2
| Connection type | Connection nipple for couplings NW 7.2 |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.004 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Working pressure max. | 6 bar |
| Working pressure min. | 2 bar |
| Exception | 6b |
| Max. operating pressure | 10 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Nozzle | M12x1.25 |
| Nozzle type | Standard nozzle, bore 1.5 mm |
| Class name | PLUS |
| Material | Nickel-plated die-cast aluminum |
| Material identification | EN AC-46100 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Temperature range max. | 50 °C |
| Temperature range min. | -10 °C |
