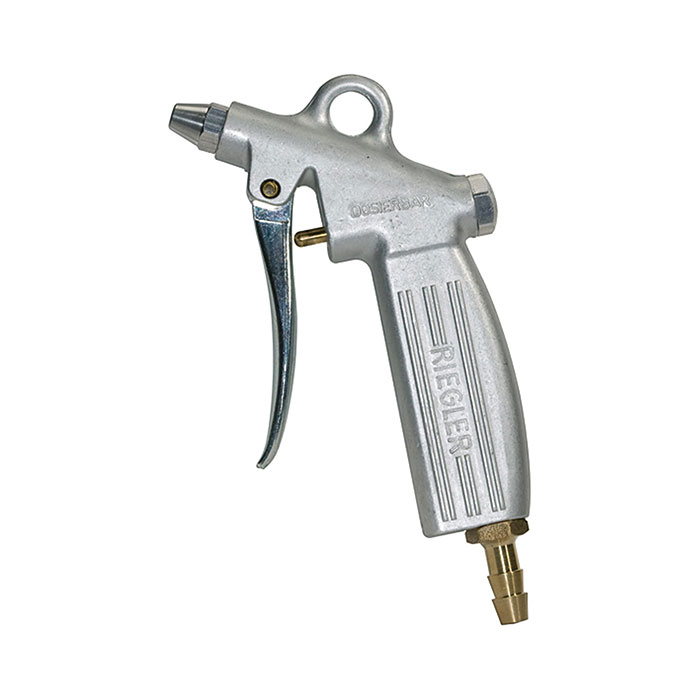

RIEGLER metering blowgun, standard nozzle, die-cast aluminum, nickel-plated, LW 13
Typennummer: DBPLW13
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Dosing blow gun made of nickel-plated die-cast aluminum, for compressed air cleaning - type DBPLW13
The RIEGLER dosing blow gun, standard nozzle, nickel-plated die-cast aluminum, LW 13 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of nickel-plated die-cast aluminum. The operating pressure range is 2 bar to 6 bar. The temperature range is between -10 °C and 50 °C. Reduces cleaning time and keeps workstations clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Connection type | Grommet LW 13 |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.004 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Working pressure max. | 6 bar |
| Working pressure min. | 2 bar |
| Exception | 6b |
| Max. operating pressure | 10 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Nozzle | M12x1.25 |
| Nozzle type | Standard nozzle, bore 1.5 mm |
| Class name | PLUS |
| Material | Nickel-plated die-cast aluminum |
| Material identification | EN AC-46100 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Temperature range max. | 50 °C |
| Temperature range min. | -10 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[198620] RIEGLER metering blowgun standard nozzle, die-cast aluminum, nickel-plated. G 1/4 i.](/web/image/product.template/267874/image_128/%5B198620%5D%20RIEGLER%20metering%20blowgun%20standard%20nozzle%2C%20die-cast%20aluminum%2C%20nickel-plated.%20G%201-4%20i.?unique=486d8dd)
|
Typennummer: DBPG14 |
14.85 € | |
![[202428] RIEGLER metering blowgun, standard nozzle, die-cast aluminum, nickel-plated, LW 6](/web/image/product.template/267889/image_128/%5B202428%5D%20RIEGLER%20metering%20blowgun%2C%20standard%20nozzle%2C%20die-cast%20aluminum%2C%20nickel-plated%2C%20LW%206?unique=ecee8f2)
|
Typennummer: DBPLW6 |
18.80 € | |
![[202426] RIEGLER metering blowgun, standard nozzle, die-cast aluminum, nickel-plated, LW 9](/web/image/product.template/267888/image_128/%5B202426%5D%20RIEGLER%20metering%20blowgun%2C%20standard%20nozzle%2C%20die-cast%20aluminum%2C%20nickel-plated%2C%20LW%209?unique=a492874)
|
Typennummer: DBPLW9 |
18.80 € | |

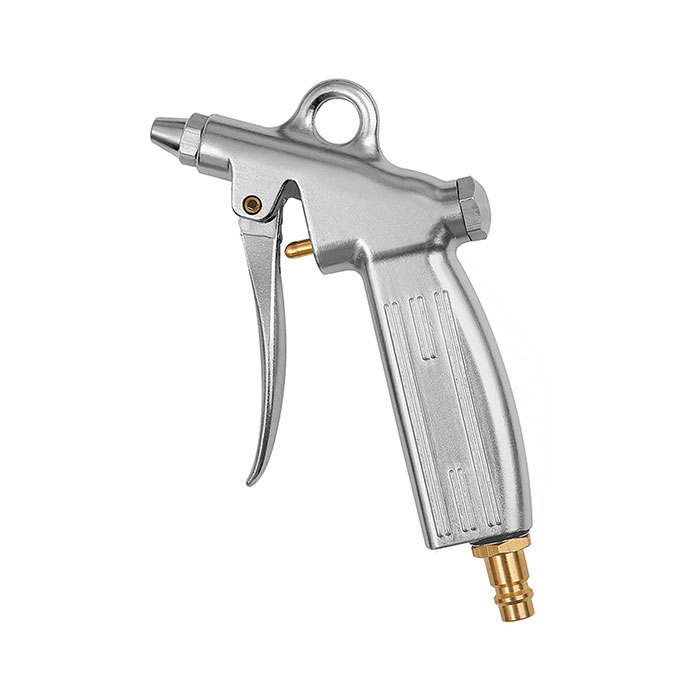

![[202424] RIEGLER metering blow gun, standard nozzle, nickel-plated die-cast aluminum, NW 7.2](/web/image/product.template/267886/image_128/%5B202424%5D%20RIEGLER%20metering%20blow%20gun%2C%20standard%20nozzle%2C%20nickel-plated%20die-cast%20aluminum%2C%20NW%207.2?unique=aa598a5)
|
