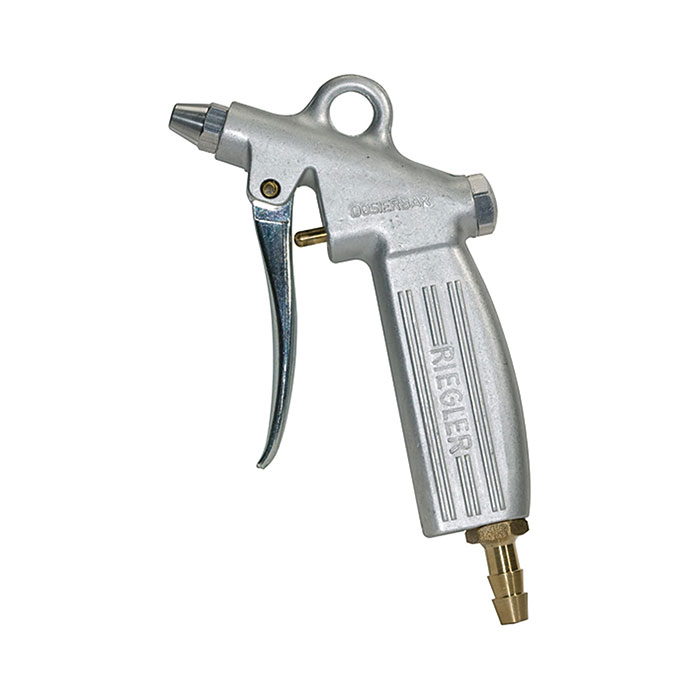

RIEGLER metering blowgun, standard nozzle, die-cast aluminum, nickel-plated, LW 6
Typennummer: DBPLW6
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Metering blow gun made of nickel-plated die-cast aluminum, for compressed air cleaning - type DBPLW6
The RIEGLER dosing blow gun, standard nozzle, nickel-plated die-cast aluminum, LW 6 is a powerful compressed air blow gun for the targeted cleaning of workpieces, machines and workplaces. The housing is made of nickel-plated die-cast aluminum. The operating pressure range is 2 bar to 6 bar. The temperature range is between -10 °C and 50 °C. Reduces cleaning time and keeps workstations clean.
Field of application
Typical areas of application: Workshop, production and industrial cleaning.
| Connection type | Grommet LW 6 |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Share of SVHC substance in % for RoHS | 0.004 |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Working pressure max. | 6 bar |
| Working pressure min. | 2 bar |
| Exception | 6b |
| Max. operating pressure | 10 bar |
| CAS No. SVHC 1 | 7439-92-1 |
| Nozzle | M12x1.25 |
| Nozzle type | Standard nozzle, bore 1.5 mm |
| Class name | PLUS |
| Material | Nickel-plated die-cast aluminum |
| Material identification | EN AC-46100 |
| REACH Info | contains SVHC substance |
| REACH SVHC1 Substance Name | Lead |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Temperature range max. | 50 °C |
| Temperature range min. | -10 °C |
