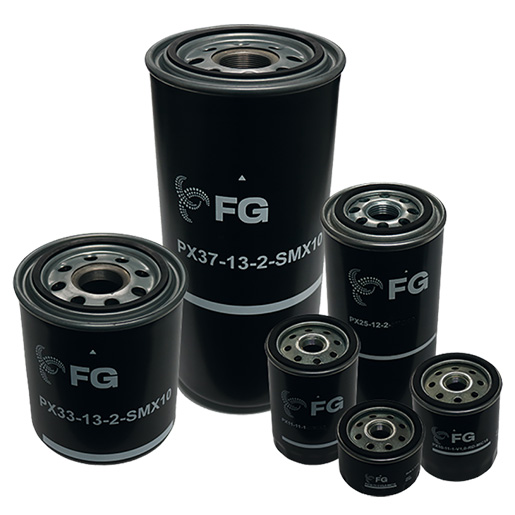

Filtration Group Hydr.-Spin-on filter HC 42
HC 42 screw-on cartridge for low-pressure filters
Nominal size 63 l/min
Filter material glass fiber
Filter fineness 1 µm
Nominal pressure 1 bar
Filter area 336 cm²
Filtration Group's filtration and separation solutions ensure success, guarantee trouble-free plant operation, promote clean working environments and protect valuable capital goods
Filtration Group (formerly MAHLE) Spin-on cartridge HC 42 spin-on hydraulic filter / 7751372
Optimum filter selection thanks to modular system
Minimal pressure loss due to streamlined design of the components
High dirt holding capacity and differential pressure stability of the elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
Note:
The nominal size varies depending on the size of the filter housing for low-pressure / suction filter Pi 1941, see "Technical data for low-pressure filter / suction filter Pi 1941".
| Outer diameter (mm) | 93.5 |
| Outer seal diameter (mm) | 72 |
| Inner seal diameter (mm) | 62 |
| Filter fineness (micrometres) | 10 |
| Thread designation | 1-12UNF-2B |
| Nominal height (mm) | 210 |
| Seal material | NBR |
| Permitted operating pressure (bar) | 10 |
| Filter material | Glass fiber |
