Filtration Group Low pressure filter Pi 1560/10-058 / 77774615

Low-pressure filter Pi 15, rated 63 l/min,
rated pressure 1 bar,
includes:
- Bypass
- Electrical maintenance indicator

1,548.59 € 1548.5900000000001 EUR 1,548.59 € VAT Included

1,587.00 € VAT Included

Brand

This combination does not exist.

Add to Cart

from 110 € free shipping Details shipping costs

Filtration Group

Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets

Product no. :

77774615

Category :

Filtration Group Low Pressure Filter

Weight :

24.40 kg

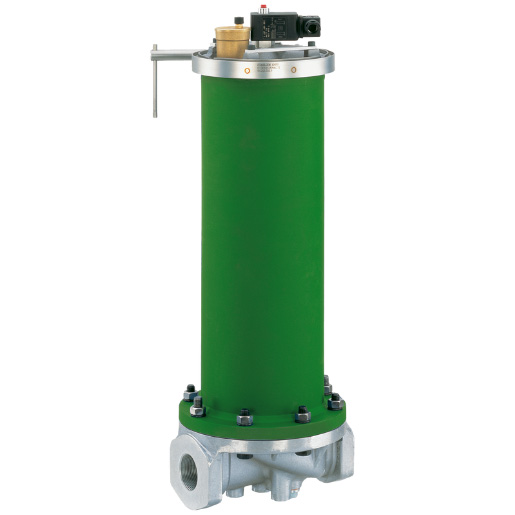

Filtration Group (formerly MAHLE) Low pressure filter Pi 156/1-58 / 77774615

Intended for installation in pipes

Modular system for optimum filter selection

Low space requirement due to compact design

Minimal pressure loss due to streamlined design of the components

Bypass

Electrical maintenance indicator

Version with threaded connections

Equipped with highly efficient PS filter elements

Guaranteed separation rates according to multi-pass test in accordance with ISO 16889

High differential pressure stability and dirt holding capacity of the elements

Important note:
We supply the Mahle low-pressure filter Pi 156/1-58 without the filter element.
For suitable filter elements and accessories, see "Accessories".

Connection type	Flange
Connection size	SAE 2
Display pressure of contamination indicator (bar)	2,2
Evaluation of pollution indicators	electrical / mechanical
Operating temperature	-30°C bis +120°C
Bypass valve Opening pressure (bar)	3,5
Contact type Contamination indicator	Closer / Opener
Max. Operating pressure (bar)	10
Nominal size	600
Type Contamination indicator	VA Differential pressure
Contamination indicator	ja
Seal material	NBR
Filter housing material	St
Filter head material	GAL
