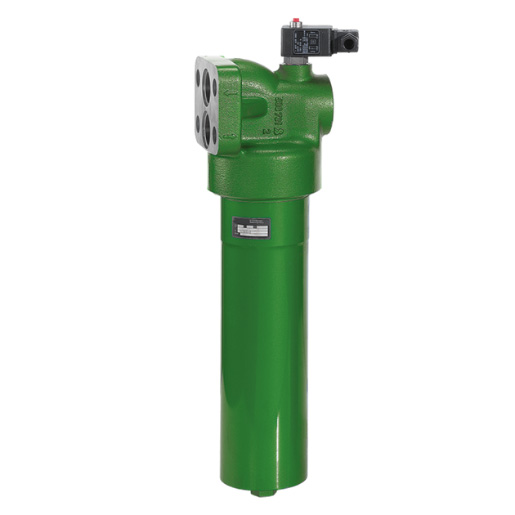

Filtration Group Medium pressure filter Pi 3445-013
Medium pressure filter Pi 34
Nominal size 45 l/min,
including:
- Bypass
- Electrical maintenance indicator
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Medium pressure filter Pi 3445-013 / 77922016
Intended for mounting on control blocks
Low space requirement due to compact design
Modular system for optimum filter selection
Minimal pressure loss due to streamlined design of the components
Bypass
Electrical maintenance indicator
Available with high-efficiency PS filter elements
Guaranteed separation rates according to multi-pass test in accordance with ISO 16889
High dirt holding capacity and differential pressure stability of the elements
Important note:
We supply the Mahle medium pressure filter Pi 3445-13 without the filter element.
For suitable filter elements and accessories, see "Accessories".
| Connection type | ANFLANSCHBAR |
| Connection size | DN 38 |
| Display pressure of contamination indicator (bar) | 5 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -10°C bis +120°C |
| Bypass opening pressure (bar) | 7 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 315 |
| Nominal size | 450 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | Steel |
| Filter head material | GGG |
