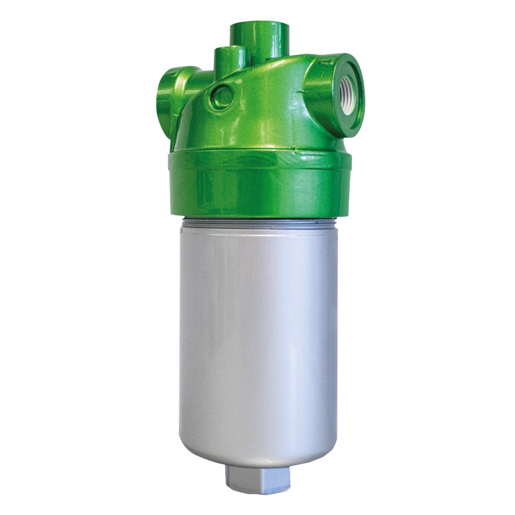

Filtration Group Low pressure filter Pi 20010-058
Low pressure filter Pi 2 DIN 2455
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
| Connection type | Thread ISO 228 |
| Connection size | G 3/4 |
| Display pressure of contamination indicator (bar) | 2,2 |
| Evaluation of pollution indicators | electrical / mechanical |
| Operating temperature | -30°C bis +120°C |
| Bypass valve Opening pressure (bar) | 3,5 |
| Contact type Contamination indicator | Closer / Opener |
| Max. Operating pressure (bar) | 63 |
| Nominal size | 100 |
| Type Contamination indicator | VA Differential pressure |
| Contamination indicator | ja |
| Seal material | NBR |
| Filter housing material | ALU |
| Filter head material | ALU |
