Filtration Group dust filter element 852 656 TI 56/2-0,25 2-pack

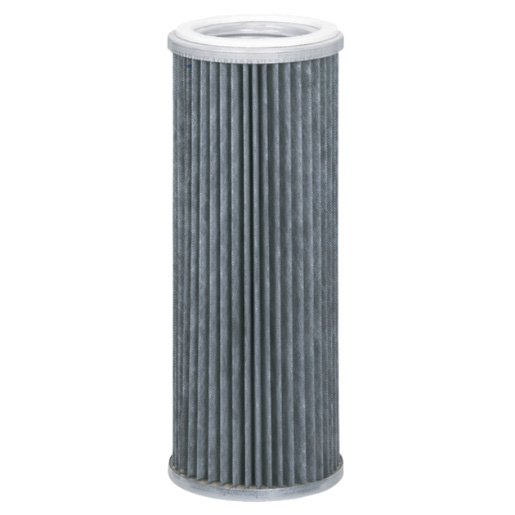

Cylindrical dust filter element
Diameter:328 mm
Filter material: Polyester fleece with PTFE membrane
Filter area: 0.25 m²
Filtration and separation solutions from Filtration Group are designed to ensure success: they guarantee smooth plant operation, contribute to cleanliness in work environments and environmental protection, and safeguard valuable assets
Filtration Group (formerly MAHLE) Dust filter element 852 656 TI 56/2-,25 pack of 2 / 78334674
Notes:
- The volume flow rate value is based on a filter surface load of 1.7 m³/m² min
- The initial pressure loss of > 25 pa depends on the volume flow rate and filter material
- The operating temperature depends on the media/material
| Outer diameter (mm) | 115,00 |
| Element fastening | Rd 60 x 4 |
| Element shape | Cylindrical |
| Element type | 852 Series |
| End disc material | Sheet metal end plate |
| Filter material | TI 56/2 |
| Height (mm) | 200 |
| Inner diameter (mm) | 54 |
| Installation | Raw gas side |
| Medium | Air |
| Seal material | Felt (polyester) |
