Parker filter element CP 3040 A with housing seal
Activated charcoal filter element CP3040A suitable for Zander GL Series A housings, including matching housing seal
Rely on quality with an original Parker filter!
As a global leader, Parker offers a comprehensive range of technologies for filtration and separation, cooling, and adsorption, covering virtually all aspects of compressed air and gas treatment.

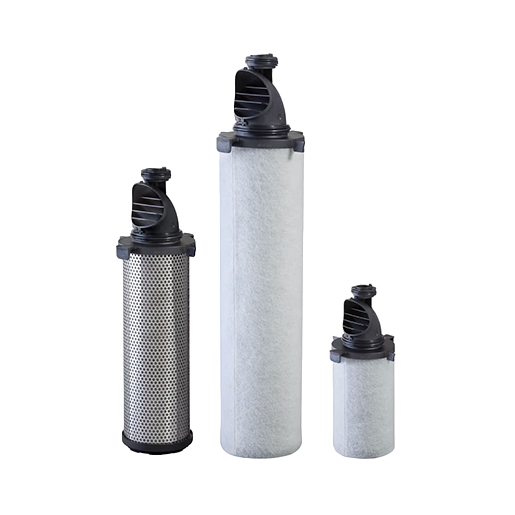

Original Parker Zander activated charcoal filter element CP3040A
This activated carbon filter element adsorptively removes oil vapors and odorous substances from pre-dried compressed air and compressed nitrogen gas with an upstream XL filter stage.
Filter element with stainless steel expanded metal mesh and end caps made of polyamide, glass fiber reinforced, support grid made of polypropylene
Filter fleece: fiber fabric, enriched with activated carbon granulate
max. operating pressure: 20 bar with manual drain or without trap
Operating temperature: +1.5°C to +50°C with manual drain or without trap
Differential pressure dry: < 70 mbar
Note:
The separation performance is influenced by the oil vapor load, the relative humidity and the temperature of the compressed air.
An element change is recommended after 650 operating hours at the latest.
We only supply original Parker Zander quality!
