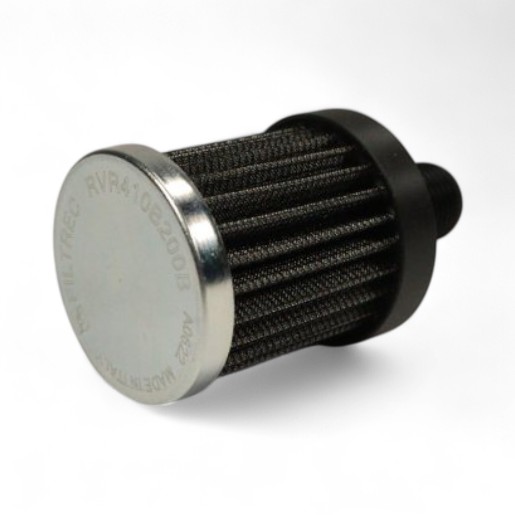

FILTREC replacement filter element for SF-Filter HY11430
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for SF filter HY 11430 - quality from Italy
This FILTREC replacement filter element with stainless steel wire mesh filter medium, 200 µm filter fineness, NBR seal and max. 30 bar differential pressure is the high-quality alternative to the SF filter HY 11430. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 30 |
| Height (mm) | 76 |
| Connection thread | M16x1,5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 200 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |

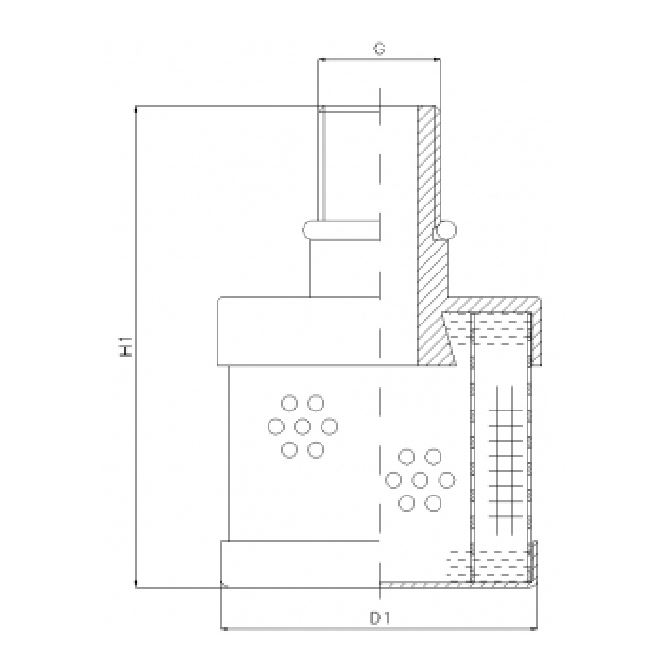

| D1 | 41.5 |
| G | M16x1,5 |
| H1 | 76 |
