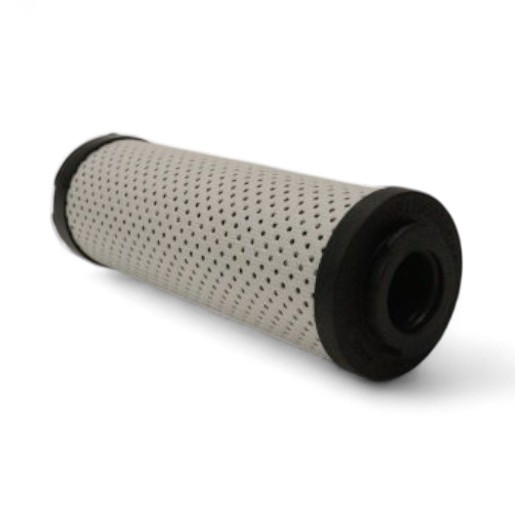

FILTREC replacement filter element for Hydac 01263478
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 01263478 - quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 20 µm filter fineness, NBR seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 01263478. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 52 |
| Height (mm) | 100 |
| Inner diameter top (mm) | 24 |
| Inner diameter bottom (mm) | 22,2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß20=200 / ß22=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 52 |
| D2 (mm) | 202 |
| D3 (mm) | 24 |
| H1 | 100 |
| H2 | 103 |
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 52 |
| Height (mm) | 100 |
| Inner diameter top (mm) | 24 |
| Inner diameter bottom (mm) | 22,2 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß20=200 / ß22=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 52 |
| D2 (mm) | 202 |
| D3 (mm) | 24 |
| H1 | 100 |
| H2 | 103 |
