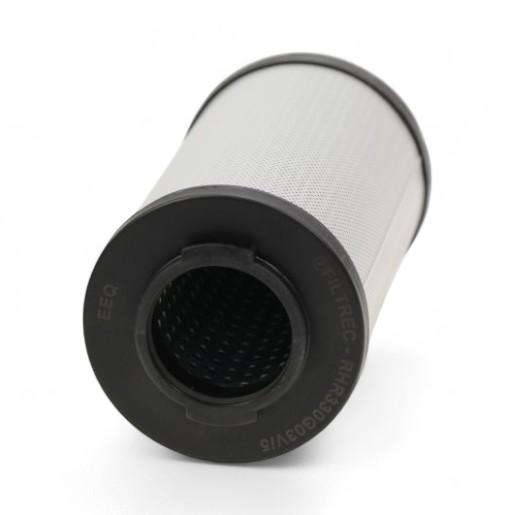

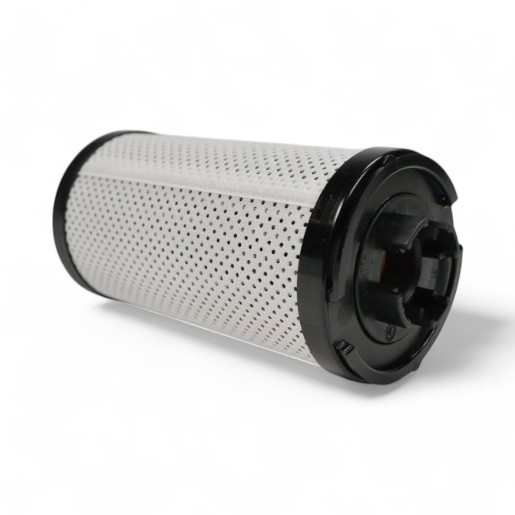

FILTREC replacement filter element for Hydac 0330R003ONVKB
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 0330 R 003 ONVKB - Quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 4µm filter fineness, VITON seal and max. 20 bar differential pressure is the high-quality alternative to the Hydac 0330 R 003 ONVKB. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Außen nach innen |
| max. differential pressure (bar) | 20 |
| Outer diameter (mm) | 94.5 |
| Height (mm) | 194 |
| Inner diameter top (mm) | 48,2 |
| Inner diameter bottom (mm) | 45,8 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | <ß4=200 / ß5=1000 |
| Seal material | VITON |
| Zul. Dauereinsatztemperatur | -25°C to 100°C |
| D1 | 945 |
| D2 (mm) | 482 |
| D3 (mm) | 458 |
| H1 | 194 |
| H2 | 14 mm |
