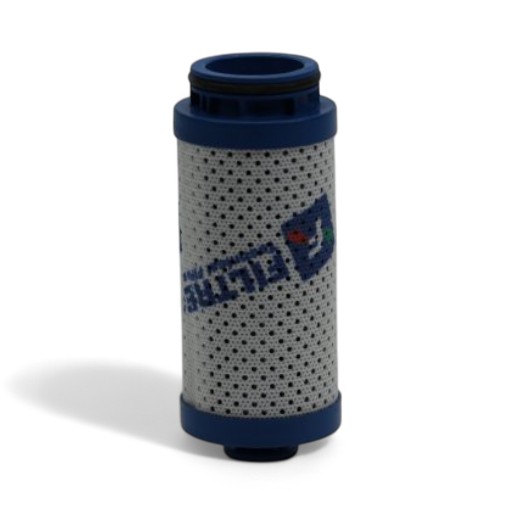

FILTREC replacement filter element for Hydac 12804D12RTPLEATV
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
Precisely fitting replacement filter element for Hydac 12804D12RTPLEATV - Quality from Italy
This FILTREC replacement filter element with glass fiber filter medium, 10µm filter fineness, FKM seal and max. 10 bar differential pressure is the high-quality alternative to the Hydac 12804D12RTPLEATV. Manufactured in Italy according to international ISO standards. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 10 bar |
| Outer diameter (mm) | 54 |
| Height (mm) | 133 |
| Inner diameter top (mm) | 25 |
| Inner diameter bottom (mm) | 42,5 |
| Filter material | Glass fiber |
| Filter fineness c (micrometer) | ß10=200 / ß12=1000 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |
| A | 54 mm |
| B | 25 mm |
| C | 425 |
| D | 1095 |
| E | 135 |
| F | 133 |
