KAESER Filter Basic model F46KB G 1 1/4", ECO-DRAIN 30
Volumenstrom: 4,61 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³
KAESER Kompressoren SE
KAESER COMPRESSORS, a family-owned company, is one of the world's leading manufacturers and providers of products and services in the field of compressed air. Founded in 1919 as a machine workshop, Kaeser now operates at two production sites in Germany and employs approximately 7,500 people worldwide.
Product no. :
MDM500011644Category :
Compressed Air FiltersWeight :
8.40 kgDelivery area :
DeutschlandDer KAESER Koaleszenzfilter Basic bietet eine zuverlässige Filtration von Feststoff- und Flüssig-Aerosolen sowie Feststoffpartikeln in Druckluftsystemen. Durch seine effektive Technologie schützt er nachgeschaltete Geräte vor schädlichen Verunreinigungen und sorgt für eine hohe Luftqualität.
| Volume flow (m³/min) | 4,6 |
| Compressed air inlet connection | G 1 1/4" |
| Differential pressure in new condition | < 0,03 |
| Differential pressure at saturation | < 0,14 |
| Residual aerosol content | < 0,1 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Condensate drain | ECO-DRAIN 30 |
| Degree of filtration | KB - Coalescence filter Basic |
Product variants
| Product | Price | ||
|---|---|---|---|
![[102121.10541] KAESER Filter Basic model F46KB G 1 1/4", ECO-DRAIN 31F](/web/image/product.template/262306/image_128/%5B102121.10541%5D%20KAESER%20Filter%20Basic%20model%20F46KB%20G%201%201-4%22%2C%20ECO-DRAIN%2031F?unique=3cc15d9)
|
Volumenstrom: 4,61 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
1,021.02 € | |

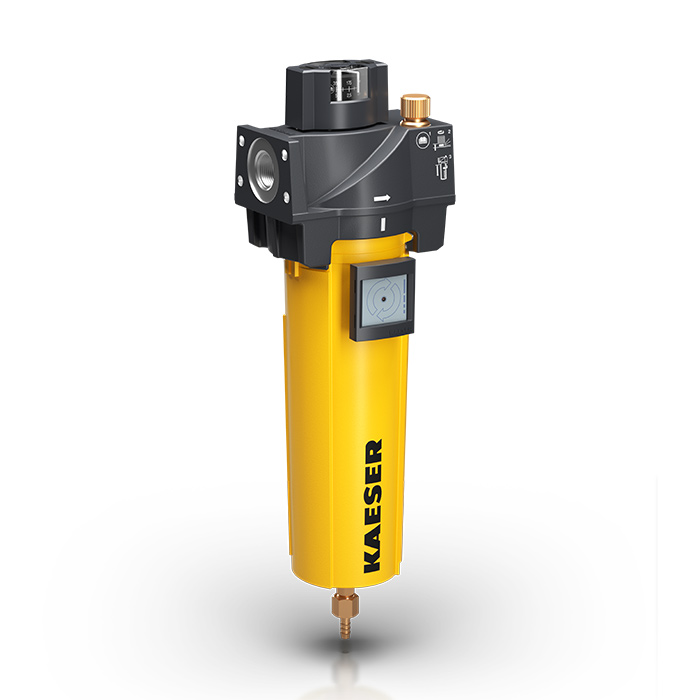

![[102121.10511] KAESER Filter Basic model F46KB G 1 1/4", Float drain](/web/image/product.template/262305/image_128/%5B102121.10511%5D%20KAESER%20Filter%20Basic%20model%20F46KB%20G%201%201-4%22%2C%20Float%20drain?unique=3cc15d9)
|
Volumenstrom: 4,61 m³/min | Rest-Aerosolgehalt am Austritt: < 0,1 mg/m³ |
697.94 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=7085d25)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
44.98 € | |
![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=ef71e09)
|
KIT Wall bracket for KAESER compressed air filters |
82.47 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[8.2474.01550] KAESER ECO-DRAIN 30 service unit](/web/image/product.template/16932/image_128/%5B8.2474.01550%5D%20KAESER%20ECO-DRAIN%2030%20service%20unit?unique=7085d25)
|
Für Kondensatableiter KAESER ECO-DRAIN 30 |
167.79 € | |
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=ef71e09)
|
Filterelement für KAESER Filter Basic Modell F110KB |
583.10 € | |
