KAESER Filter Basic model F46KB G 1 1/2", ECO-DRAIN 30
Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³
KAESER KOMPRESSOREN, a family-owned company, has been one of the world's leading manufacturers and suppliers of compressed air products and services since 1919
Product no. :
MDM500011704Category :
Compressed Air FiltersWeight :
8.40 kgDelivery area :
DeutschlandThe KAESER coalescence filter Basic offers reliable filtration of solid and liquid aerosols as well as solid particles in compressed air systems. Its effective technology protects downstream equipment from harmful contaminants and ensures high air quality.
| Volume flow (m³/min) | 4,6 |
| Compressed air inlet connection | G 1 1/2" |
| Differential pressure in new condition | < 0,03 |
| Differential pressure at saturation | < 0,14 |
| Residual aerosol content | < 0,1 |
| Min. overpressure | 2 bar |
| Max. Overpressure | 16 bar |
| Condensate drain | ECO-DRAIN 30 |
| Degree of filtration | KB - Coalescence filter Basic |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

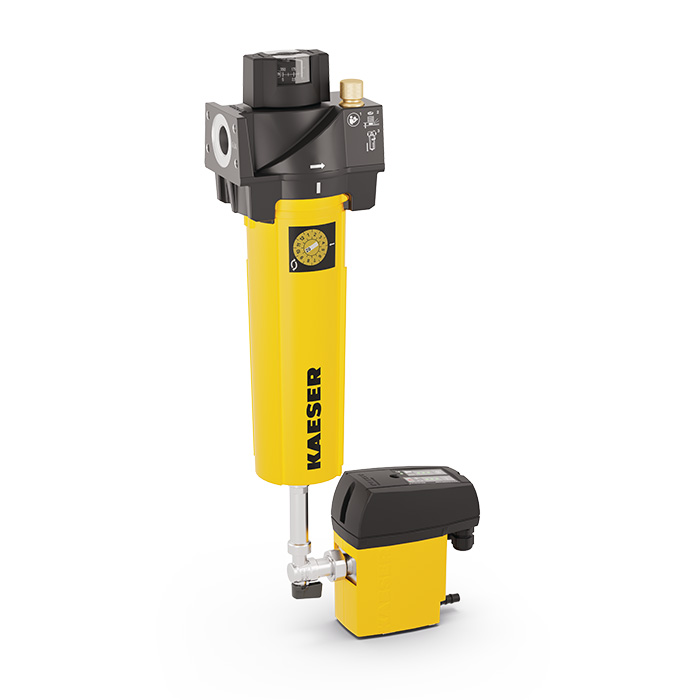

![[MDM500011700] KAESER Filter Basic model F46KB G 1 1/2", ECO-DRAIN 31F](/web/image/product.template/262397/image_128/%5BMDM500011700%5D%20KAESER%20Filter%20Basic%20model%20F46KB%20G%201%201-2%22%2C%20ECO-DRAIN%2031F?unique=65e63cc)
|
Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
1,017.45 € | |

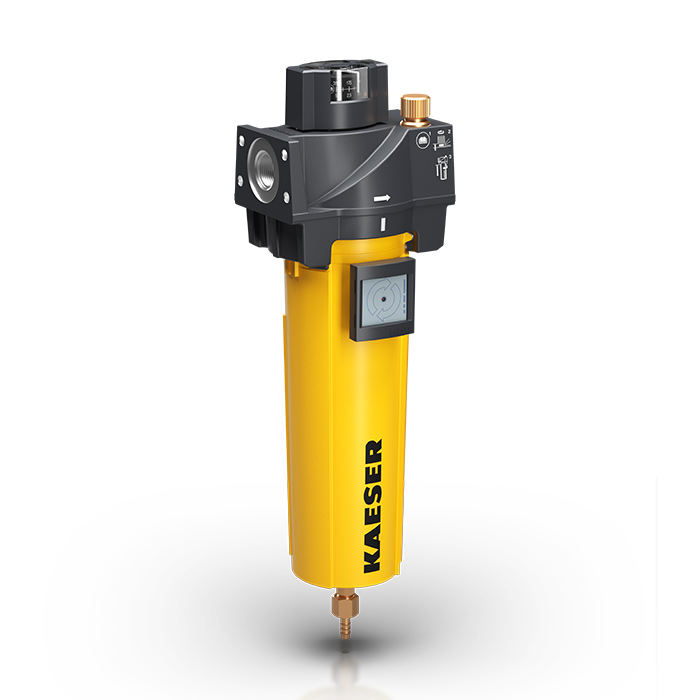

![[102121.10611] KAESER Filter Basic model F46KB G 1 1/2", Float drain](/web/image/product.template/262307/image_128/%5B102121.10611%5D%20KAESER%20Filter%20Basic%20model%20F46KB%20G%201%201-2%22%2C%20Float%20drain?unique=4cb27df)
|
Volume flow: 4.61 m³/min | Residual aerosol content at outlet: < 0.1 mg/m³ |
711.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[405343.0] KAESER Mounting KIT connecting flange KF3.2](/web/image/product.template/226216/image_128/%5B405343.0%5D%20KAESER%20Mounting%20KIT%20connecting%20flange%20KF3.2?unique=ab4ea98)
|
Assembly kit / connection kit for 2 KAESER compressed air filters |
45.82 € | |
![[4E0521.0] KAESER Wall holder filter kit KF3.2](/web/image/product.template/234633/image_128/%5B4E0521.0%5D%20KAESER%20Wall%20holder%20filter%20kit%20KF3.2?unique=f2ef80c)
|
KIT Wall bracket for KAESER compressed air filters |
104.72 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[8.2474.01550] KAESER ECO-DRAIN 30 service unit](/web/image/product.template/16932/image_128/%5B8.2474.01550%5D%20KAESER%20ECO-DRAIN%2030%20service%20unit?unique=b7737c5)
|
For condensate drain KAESER ECO-DRAIN 30 |
167.79 € | |
![[901507.0] KAESER Filter element E110KB](/web/image/product.template/16500/image_128/%5B901507.0%5D%20KAESER%20Filter%20element%20E110KB%20%20?unique=01a6b32)
|
Filter element for KAESER Filter Basic model F110KB |
597.38 € | |
