FILTREC hydraulic filter element (suction filter) S232T25
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S232T25 - stainless steel wire mesh, 25µm
The FILTREC filter element for suction filter S232T25 with stainless steel wire mesh filter medium, 25 µm filter fineness and max. 3 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 3 |
| Outer diameter (mm) | 120 |
| Height (mm) | 198 |
| Inner diameter (mm) | 77 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Zul. Dauereinsatztemperatur | -25°C to +120°C |

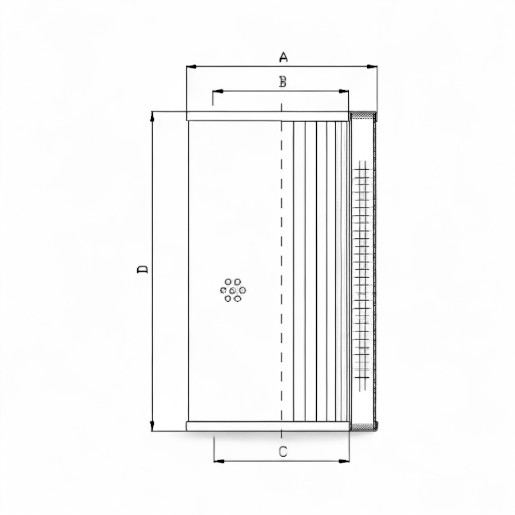

| A | 120 mm |
| B | 77 |
| C | 77 mm |
| D | 198 |
