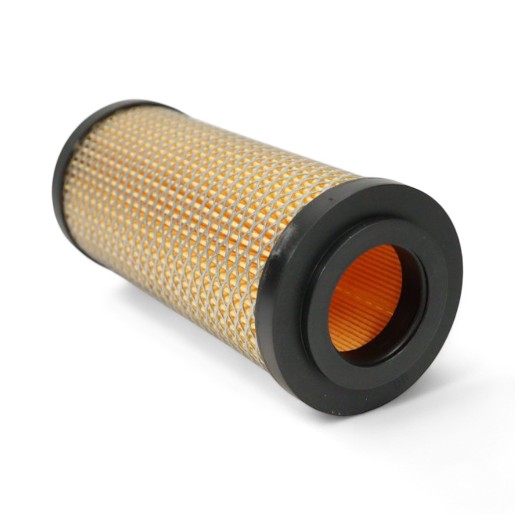

FILTREC hydraulic filter element (suction filter) S741C25
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S741C25 - cellulose, 25µm
The FILTREC filter element for suction filter S741C25 with cellulose filter medium, 25 µm filter fineness, NBR seal and max. 3 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 3 |
| Outer diameter (mm) | 99 |
| Height (mm) | 227 |
| Inner diameter (mm) | 51.5 |
| Filter material | Cellulose |
| Filter fineness c (micrometer) | ß25=2 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| A | 99 |
| B | 51.5 mm |
| C | 227 |
