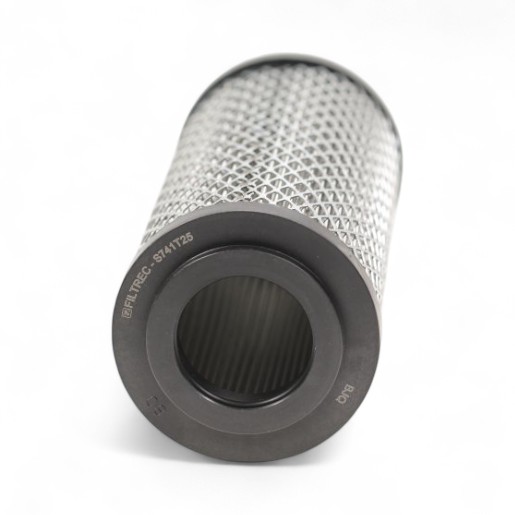

FILTREC hydraulic filter element (suction filter) S741T25
Filtrec has stood for excellence in filtration since 1991. As a family-run company based in Italy, Filtrec develops high-performance hydraulic and process filters for industrial applications - worldwide, innovative and reliable
FILTREC suction filter S741T25 - stainless steel wire mesh, 25µm
The FILTREC filter element for suction filter S741T25 with stainless steel wire mesh filter medium, 25 µm filter fineness, NBR seal and max. 3 bar differential pressure offers reliable filtration for your hydraulic system. Further technical data can be found in the "Technical data" tab.
| Field of application | Hydraulics |
| Flow direction | Innen nach aufßen |
| max. differential pressure (bar) | 3 |
| Outer diameter (mm) | 99 |
| Height (mm) | 227 |
| Inner diameter (mm) | 51.5 |
| Filter material | Wire mesh |
| Filter fineness (micrometres) | 25 |
| Seal material | NBR |
| Zul. Dauereinsatztemperatur | -30°C to +100°C |
| D1 | 99 |
| D2 (mm) | 51.5 |
| H1 | 227 |
