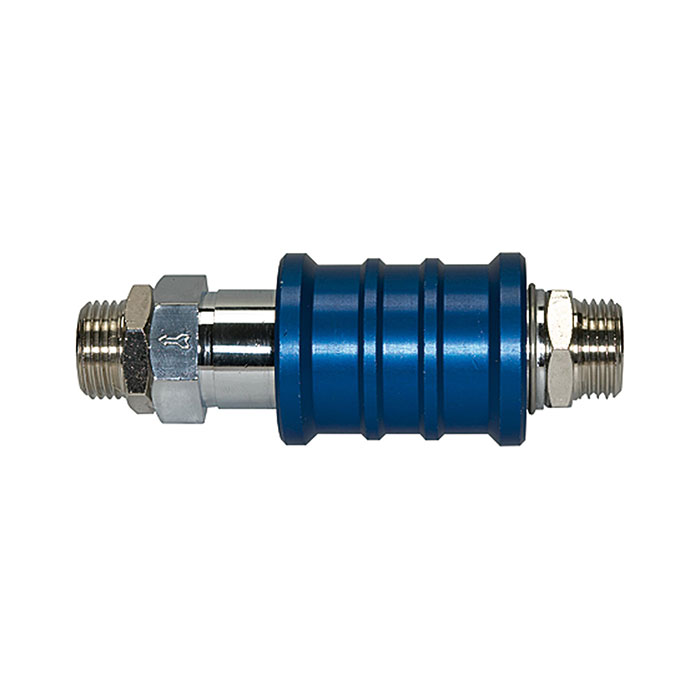

RIEGLER Hand-Schiebeventil, G 1/8 AG, SW 14, PN max. 10 bar
Typennummer: 3214.71
Das Familienunternehmen RIEGLER & Co. KG in Bad Urach steht seit über 80 Jahren für innovative, qualitativ hochwertige Lösungen im Bereich Druckluft- und Pneumatikkomponenten
Hand-Schiebeventil, Betriebstemperatur 0 °C bis 70 °C, G 1/8 AG, SW 14, PN max. 10 bar
| Betriebsdruck max. | 10 bar |
| Betriebstemperatur min. | 0 °C |
| Betriebstemperatur max. | 70 °C |
| Gewinde | G 1/8 AG |

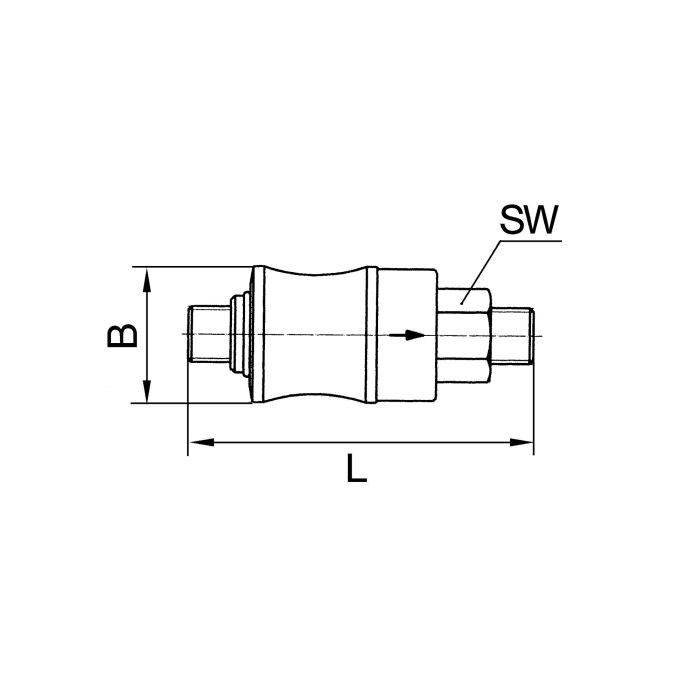

| SW | 14 mm |
| B (mm) | 21 |
| L | 67 mm |
| REACH SVHC1 Stoff Name | Blei |
| CAS-Nr. SVHC 1 | 7439-92-1 |
| RoHS Werkstoff-Hinweis | RoHS konform |
| RoHS Richtlinie | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Artikel der Richtlinie | Artikel 4, Absatz 1, Anhang 3 |
| Anteil SVHC Stoff in % bei RoHS | 0.04 |
| Ausnahme | 6c |
| REACH Info | enthält SVHC Stoff |
| Anteil SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Anteil SVHC Stoff in SCIP | >= 0,1 % in w/w |
| Materialkennung | keine |
| Klassenname | EASY |
Varianten / Alternativen
| Produkt | Einzelpreis | ||
|---|---|---|---|
![[103762] RIEGLER Hand-Schiebeventil, G 1/2 AG, SW 26, PN max. 10 bar](/web/image/product.template/171723/image_128/%5B103762%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%201-2%20AG%2C%20SW%2026%2C%20PN%20max.%2010%20bar?unique=df06ed5)
|
Typennummer: 3214.74 |
18,33 € | |
![[117407] RIEGLER Hand-Schiebeventil, G 1/2 IG, SW 26, PN max. 10 bar](/web/image/product.template/202347/image_128/%5B117407%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%201-2%20IG%2C%20SW%2026%2C%20PN%20max.%2010%20bar?unique=1f88a70)
|
Typennummer: 215.74* |
18,27 € | |
![[103760] RIEGLER Hand-Schiebeventil, G 1/4 AG, SW 17, PN max. 10 bar](/web/image/product.template/171721/image_128/%5B103760%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%201-4%20AG%2C%20SW%2017%2C%20PN%20max.%2010%20bar?unique=fe37a42)
|
Typennummer: 3214.72 |
12,22 € | |

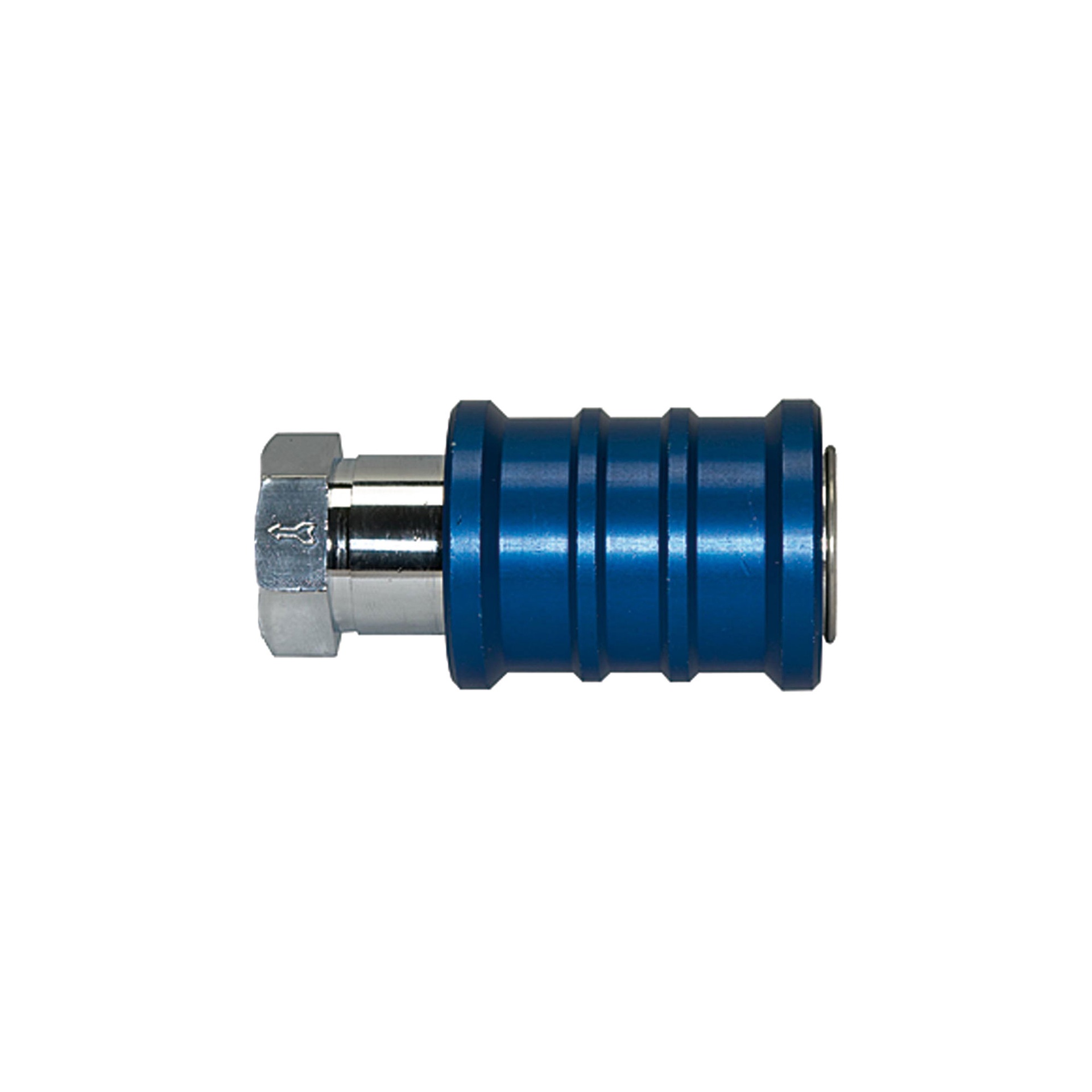

![[117405] RIEGLER Hand-Schiebeventil, G 1/4 IG, SW 17, PN max. 10 bar](/web/image/product.template/202345/image_128/%5B117405%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%201-4%20IG%2C%20SW%2017%2C%20PN%20max.%2010%20bar?unique=9770acb)
|
Typennummer: 215.72* |
10,28 € | |
![[117404] RIEGLER Hand-Schiebeventil, G 1/8 IG, SW 14, PN max. 10 bar](/web/image/product.template/202344/image_128/%5B117404%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%201-8%20IG%2C%20SW%2014%2C%20PN%20max.%2010%20bar?unique=5120692)
|
Typennummer: 215.71* |
8,06 € | |

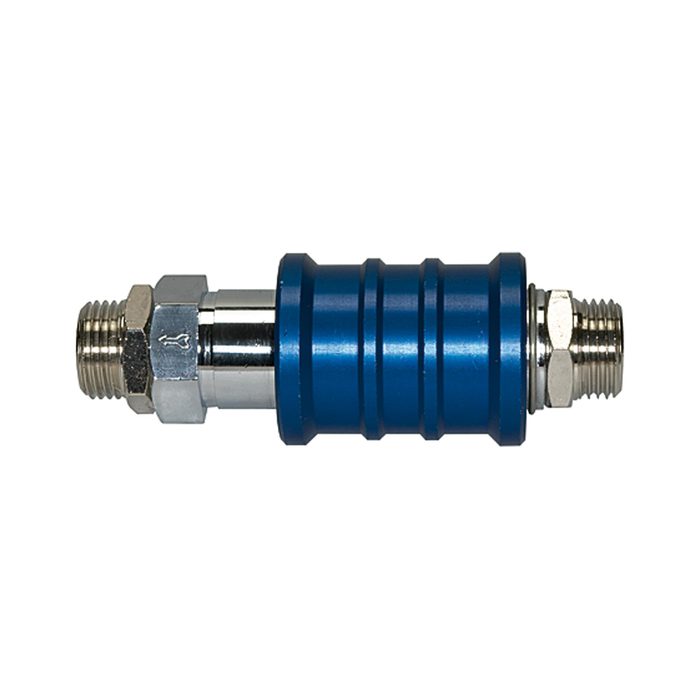

![[103761] RIEGLER Hand-Schiebeventil, G 3/8 AG, SW 22, PN max. 10 bar](/web/image/product.template/171722/image_128/%5B103761%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%203-8%20AG%2C%20SW%2022%2C%20PN%20max.%2010%20bar?unique=396610f)
|
Typennummer: 3214.73 |
16,56 € | |
![[117406] RIEGLER Hand-Schiebeventil, G 3/8 IG, SW 22, PN max. 10 bar](/web/image/product.template/202346/image_128/%5B117406%5D%20RIEGLER%20Hand-Schiebeventil%2C%20G%203-8%20IG%2C%20SW%2022%2C%20PN%20max.%2010%20bar?unique=507100d)
|
Typennummer: 215.73* |
13,80 € | |
